Ubee Interactive Using the Advanced Settings Options
Ubee UBC1301-AA00 Advanced Wireless Voice Gateway Subscriber User Guide • March 2017 65
Port forwarding sets a rule to send a service to a single LAN IP address.

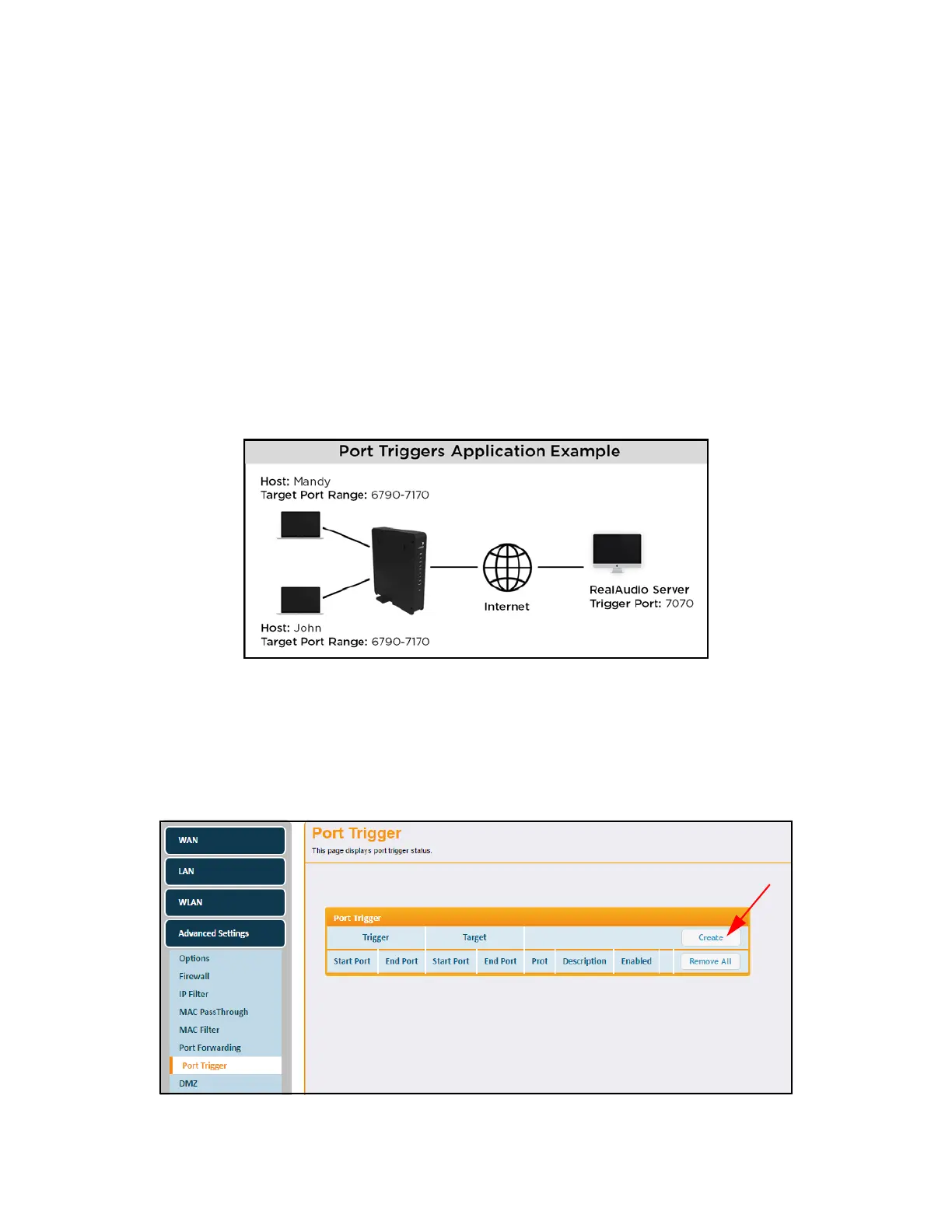

Port triggering defines two kinds of ports: trigger port and target port. The trigger
port sends a service request from a LAN host to a specific destination port number.
The port the LAN host is required to listen to by the application is called the target
port. The server returns responses to these ports.
For example:
1. John requests a file from the RealAudio server (port 7070). Port 7070 is a “trigger” port
and causes the device to record John’s computer IP address. The UBC1301-AA00
associates John's computer IP address with the “target” port range of 6970-7170.
2. The RealAudio server responds to a port number ranging between 6970-7170.
3. The UBC1301-AA00 forwards the traffic to John’s computer IP address.
4. Only John can connect to the RealAudio server until the connection is closed or
expires.
To set up Port Triggers:
1. Click Advanced Settings from the left side menu.
2. Click Port Trigger under Advanced Settings.
3. Click the Create button to begin setting up port triggers.
