To mount the UBC1329AA00 on a wall:

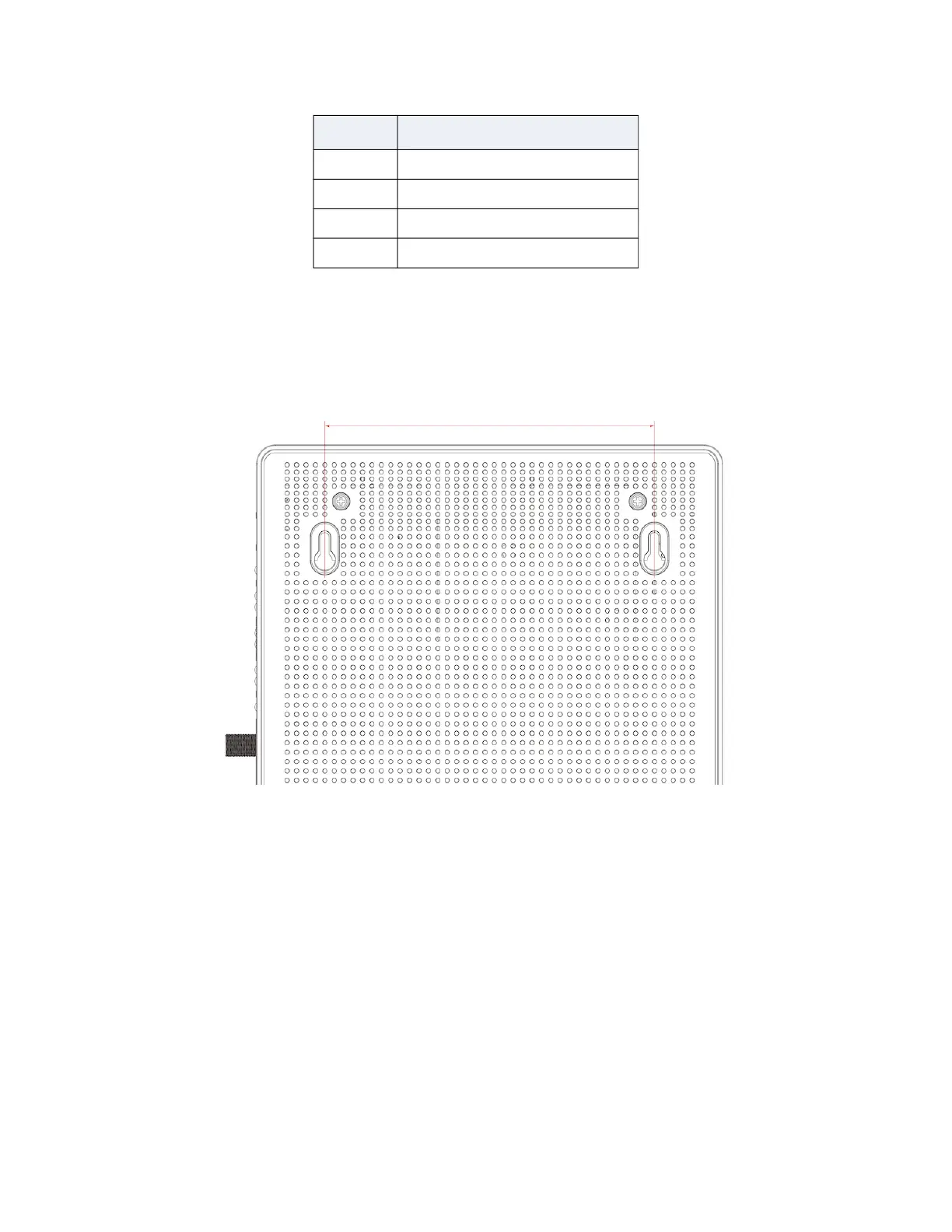

1. Install the two screws horizontally on a wall 5.51 inches (140mm) apart.
See the figure below.
The screws should protrude from the wall so that you can fit the device
between the head of the screw and the wall. If you install the screws in drywall,
use hollow wall anchors to ensure the unit does not pull away from the wall due
to prolonged strain from the cable and power connectors.
2. Mount the device on the wall.
2.2 Connecting Devices to the Network
Use the instructions below to connect network devices and validate device
functionality.
Label Size in Millimeters (mm)
A 7.2 +/- 0.5
B 2.6 +/- 0.15
C 19.0 +/- 1.2
D 4 - 5
5.51 inches (140mm)
To Next Page
