Ex ha ust hose installation:
The exhaust hose and adaptor must be installed or removed
in accordance with the installation of the unit.
The duct can be compressed or extended moderately
according to the installation requirement, but it is
desirable to keep the duct length to a minimum.
IMPORTANT:

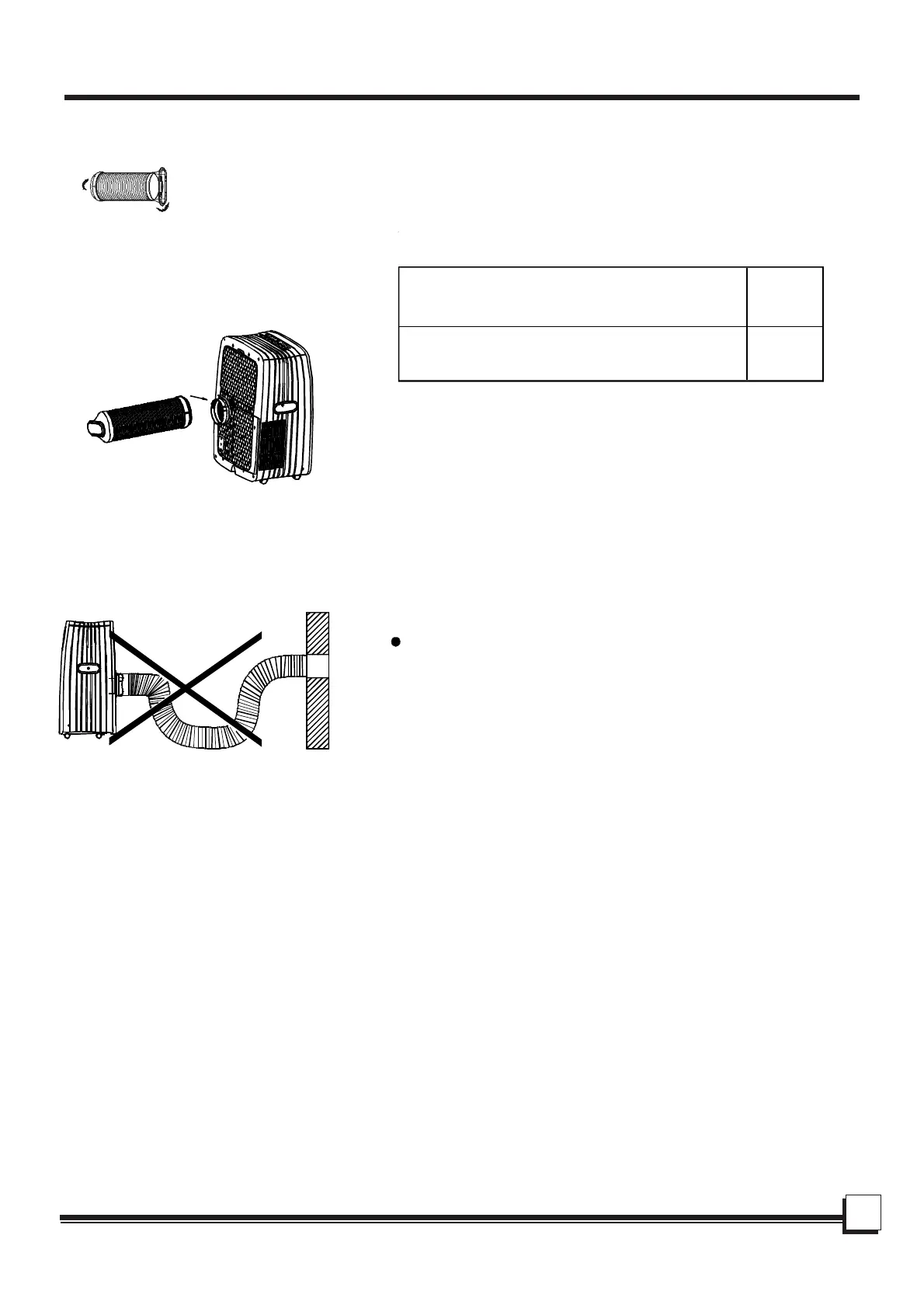

DO NOT OVER BEND THE DUCT (SEE Fig.
Fig.17
Note:
Cover the hole using the adaptor cap when not in use.
Fig.16
COOL,HEAT(heat pump type) or AUTO
mode
FAN,DEHUMIDIIFY or HEAT (electrical heat type)
mode
Install
Remove
Fig
.
18
1. Install the window exhaust adaptor B onto the exhaust
hose as shown in Fig.1 Refer to the previous
pages for window kit installation.
2. Push the exhaust hose into the airoutlet opening along the
the arrow direction(See Fig.1
6.
7).
19)
INSTALLATION INSTRUCTIONS (optional)
11
