Ubiquiti EdgeRouter 12 User Manual

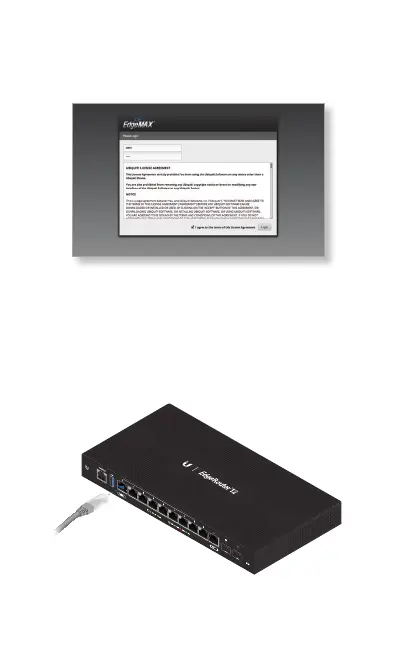

4. The login screen will appear. Enter ubnt in the Username
and Password fields. Read the Ubiquiti License Agreement,
and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.
The EdgeOS Configuration Interface will appear, allowing you
to customize your settings as needed. For more information,
refer to the EdgeOS User Guide, which is available at
www.ubnt.com/download/edgemax
Static IP Address
1. Connect an Ethernet cable from the Ethernet port on your
computer to the port labeled eth0 on the EdgeRouter.

Ubiquiti EdgeRouter 12 Specifications

General

RAM	1 GB DDR3
Flash Storage	4 GB eMMC
Total Ports	12
Gigabit RJ45 Ports	10
SFP Ports	2
Max Power Consumption	20W
Operating System	EdgeOS
Layer 3 Forwarding Performance	3.4 million pps
Total Non-Blocking Throughput	10 Gbps
Certifications	CE, FCC, IC
Power Supply	24V, 1A
Supported Voltage Range	100-240V
Operating Humidity	10 to 90% Noncondensing
Operating Temperature	-10 to 45° C
