System LED
SFP Speed/Link/Act LED (Ports 1 - 12)
RJ45 Speed/Link/Act LED (Ports 13 - 16)
Note:
The System LED functionality has been updated with rmware v1.8.0. We
recommend that you update the EdgeSwitch to the latest rmware.
Flashing White Bootup in progress.
White
Ready for use, not connected to Ubiquiti® Network
Management System (UNMS™).
Blue Ready for use, connected to UNMS.
Steady Blue with Occasional
Flashing
Ready for use, unable to connect to UNMS, check
connection to UNMS server.
Quickly Flashing Blue Used to locate a device in UNMS.
Alternating
Blue/White
Firmware upgrade in progress.
Off No Link
Amber
Link Established at 100 Mbps
Flashing Indicates Activity
Green
Link Established at 1000 Mbps (1 Gbps)
Flashing Indicates Activity
Off No Link

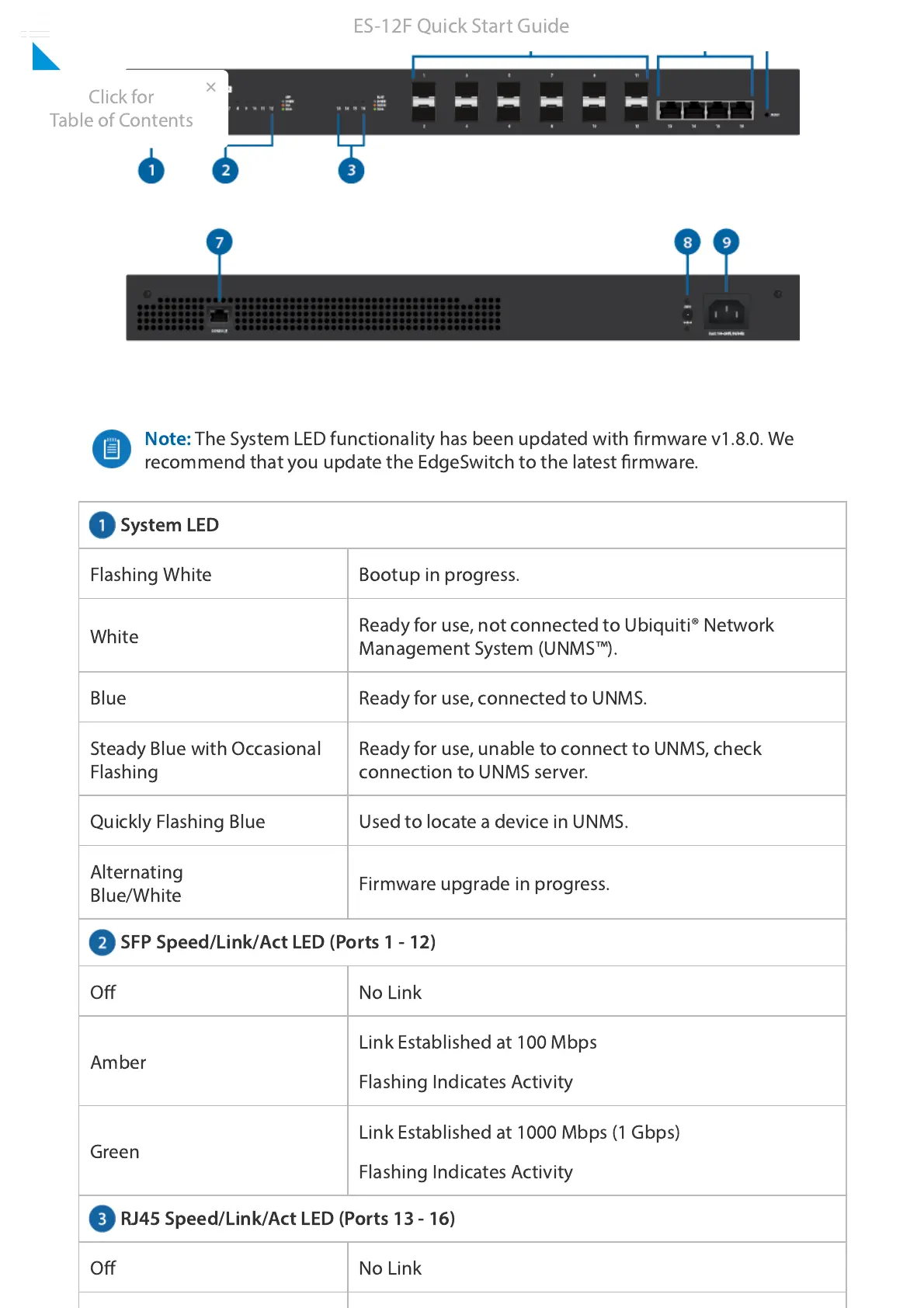

ES-12F Quick Start Guide
×
