4.2 Packaging
The MAX-M10M modules are delivered as hermetically sealed, reeled tapes in order to enable
efficient production, production lot set-up and tear-down. For more information, see the u-blox
packaging information reference [4].
4.2.1 Reels
MAX-M10M modules are deliverable in quantities of pieces on a reel. They are shipped on reel type ,
as specified in the u-blox Packaging information reference [4].
4.2.2 Tapes

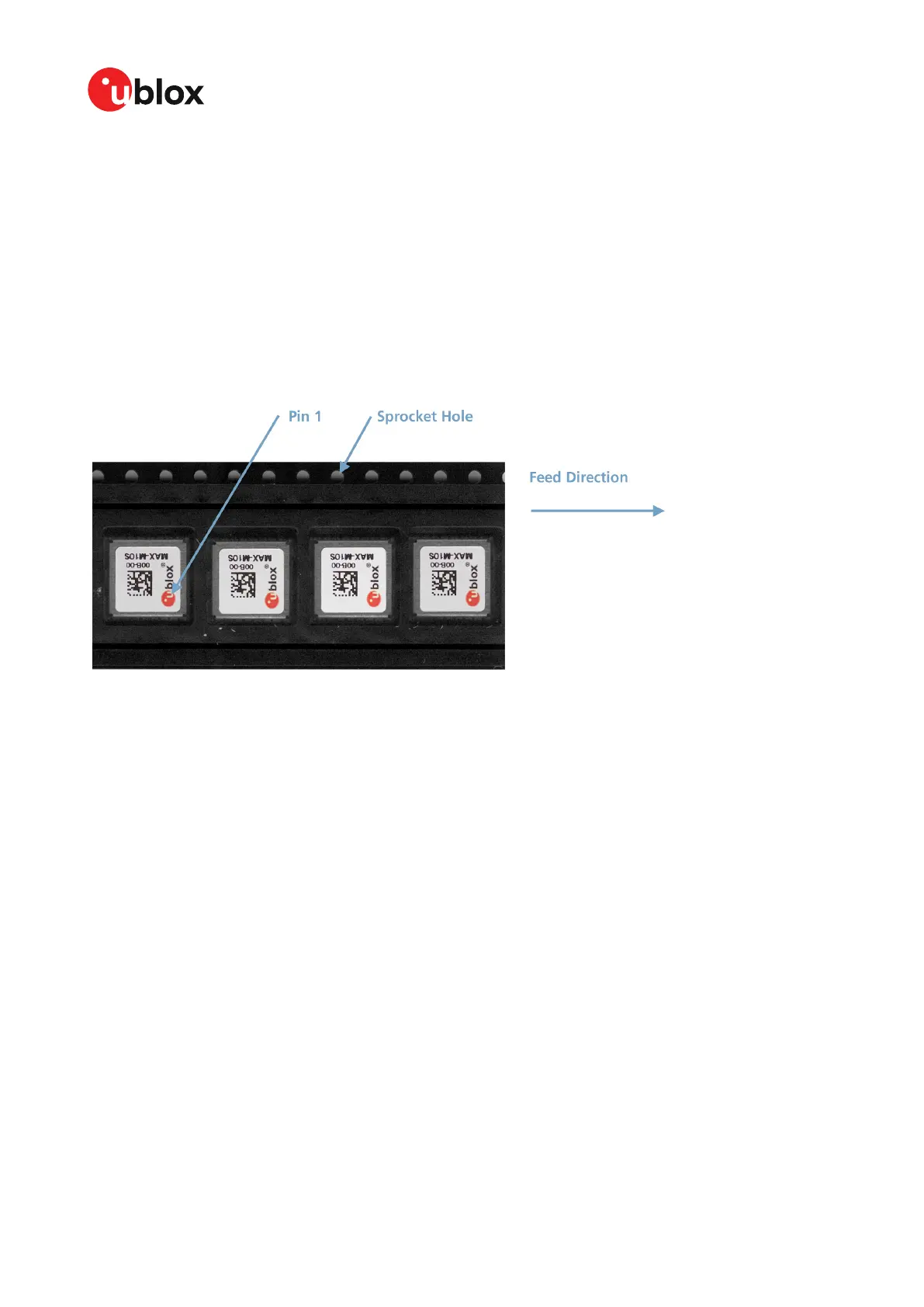

Figure 31 shows the feed direction and illustrates the orientation of the components on the tape.
Figure 31: Orientation of the components on the tape
Pin 1 is indicated by the u-blox logo. The feed direction into the pick and place pick-up is from the
reel (located on the left of the figure) towards right, and the tape is fed to the right.
The dimensions of the tape are specified in Figure 32 (measurements in mm).
