in Figure 37, which allows an SAW-LNA-SAW RF front-end circuit for improved out-of-band
immunity against RF interference from other sources.
• UART and I2C communication interfaces are available.
• For an absolute minimum design using UART, other PIOs (RESET_N, EXTINT, TIMEPULSE, SDA,
SCL, SAFEBOOT_N) can be left open.

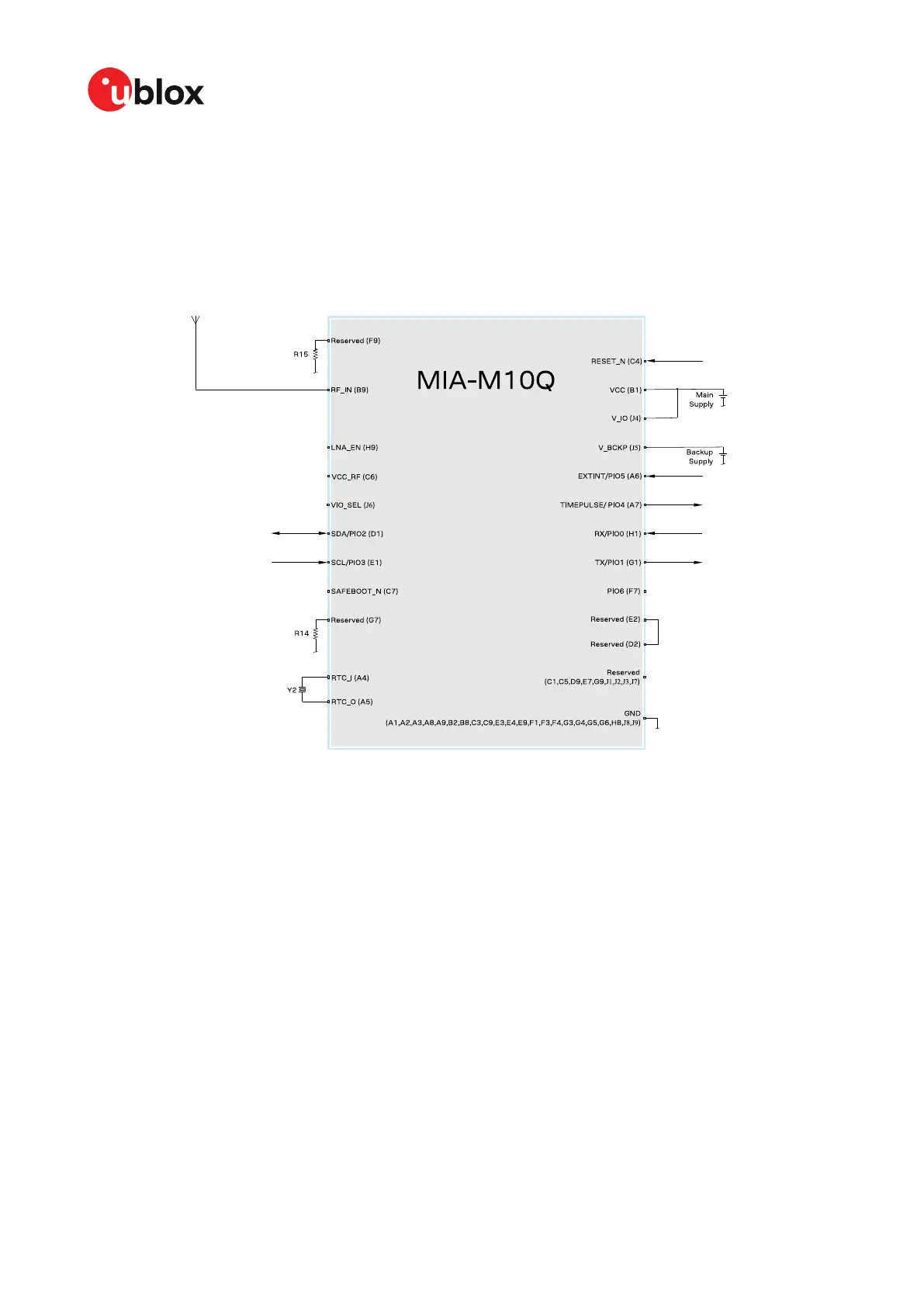

Figure 35: Typical 3.3 V design
UBX-21028173 - R01
Appendix Page 81 of 89
C1-Public
