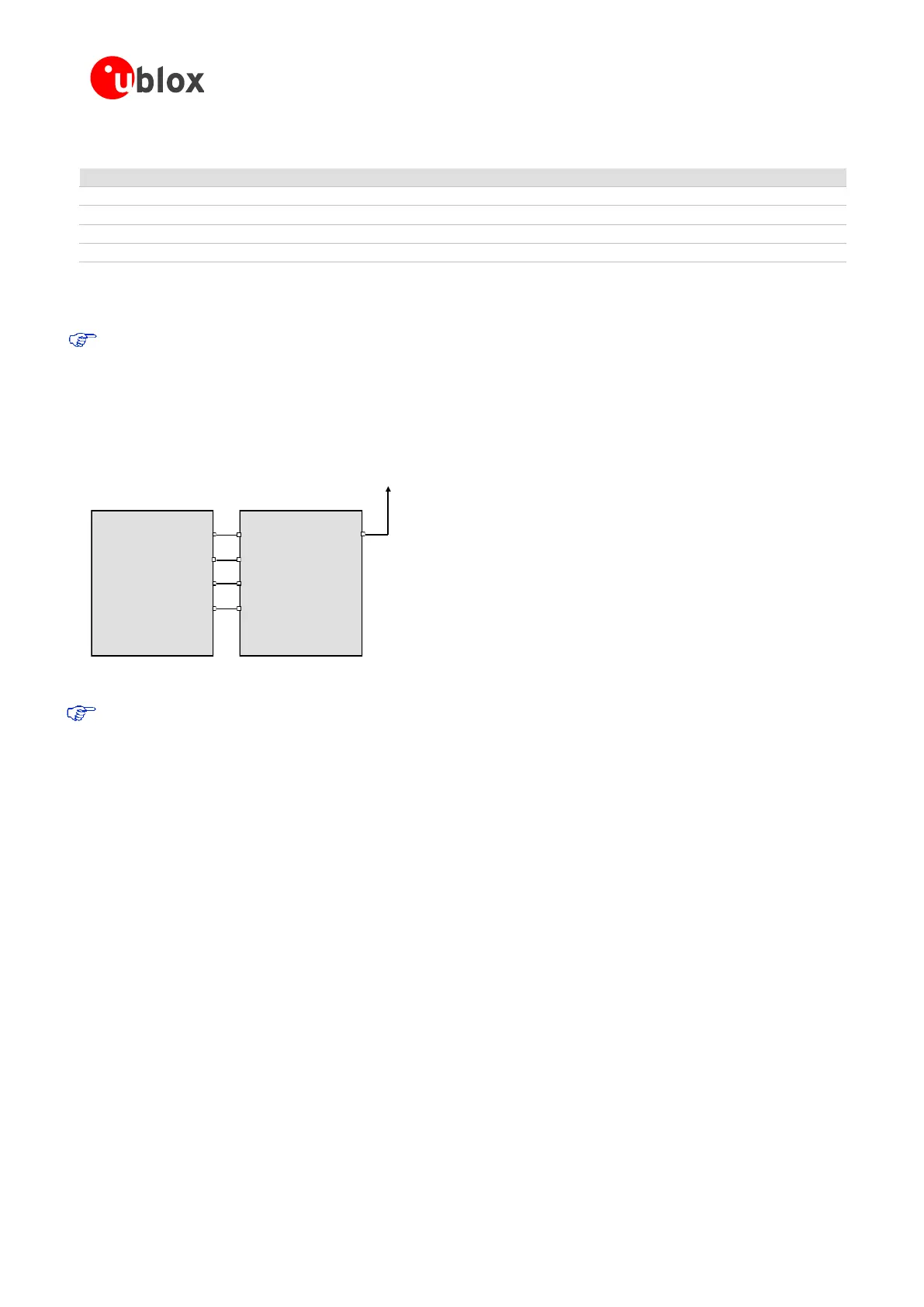

LEA-6 / NEO-6 / MAX-6 - Hardware Integration Manual
UBX-14054794 Production Information Hardware description
Page 14 of 85
Following SPI serial Flash are supported:
Table 4: Supported SPI FLASH memory devices
Only use serial FLASH types listed in Table 4. For new designs confirm if the listed type is still available. It is
not possible to use other serial FLASH types than those listed in Table 4 with u-blox 6 receivers.
1.6.4.2 SPI communication (connecting to an SPI master) NEO-6
Figure 7 shows how to connect a u-blox GPS receiver to a host/master. The signal on the pins must meet the
conditions specified in the Data Sheet.
u-blox GPS Receiver SPI Master
SS_N
MISO
SCS_N
MI
VDD
MOMOSI
SCK SCK
VDD
Figure 7: Connecting to SPI Master
For those u-blox 6 modules supporting SPI the SPI MOSI, MISO and SCK pins share a configuration
function at start up. To secure correct receiver operation make sure that the SS_N pin is high at start up.
Afterwards the SPI function will not affect the configuration pins.
