Figure 20 show a 36*36*4 mm patch antenna. Due to the large bandwidth, the antenna is also tolerant to
changes in the ground plane.
Figure 20 36*36*4 mm patch antenna
Use at least a 25*25*4 mm patch antenna, (a 36*36*4 mm patch antenna is better) and tune it so that
GPS & GLONASS signals are received.
2.2.2.5 Module designs
For GPS & GLONASS designs chose the LEA-6N GLONASS, GPS & QZSS module, which has a wide RF path and
includes an internal Flash.
2.2.2.6 Module design with active antenna

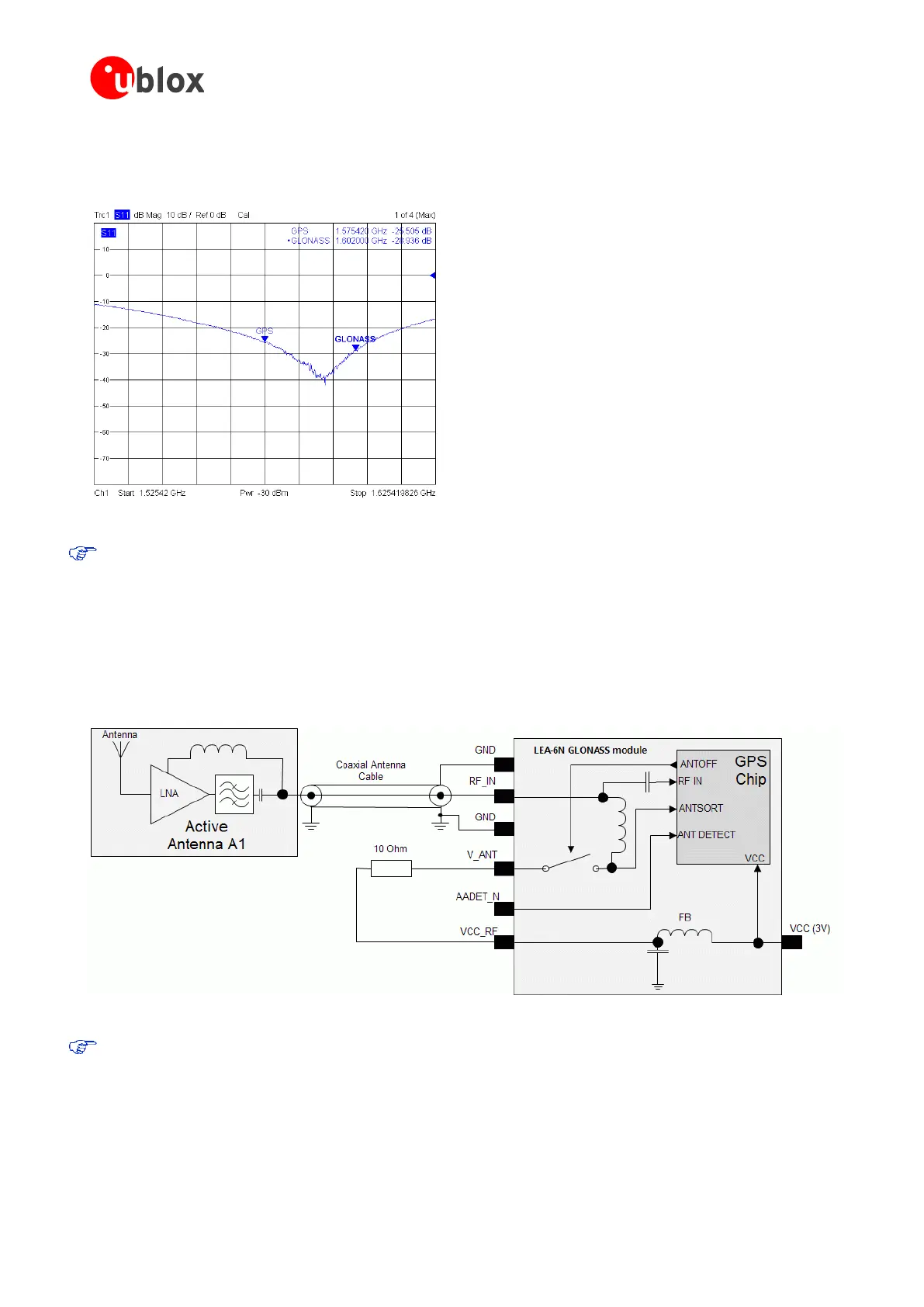

Figure 21 shows a GPS & GLONASS active antenna design with the LEA-6N GLONASS, GPS & QZSS module.
Figure 21: Module design with active antenna
Use a good performance GPS & GLONASS active antenna (for recommended components, see section
3.3.9.1).
