22

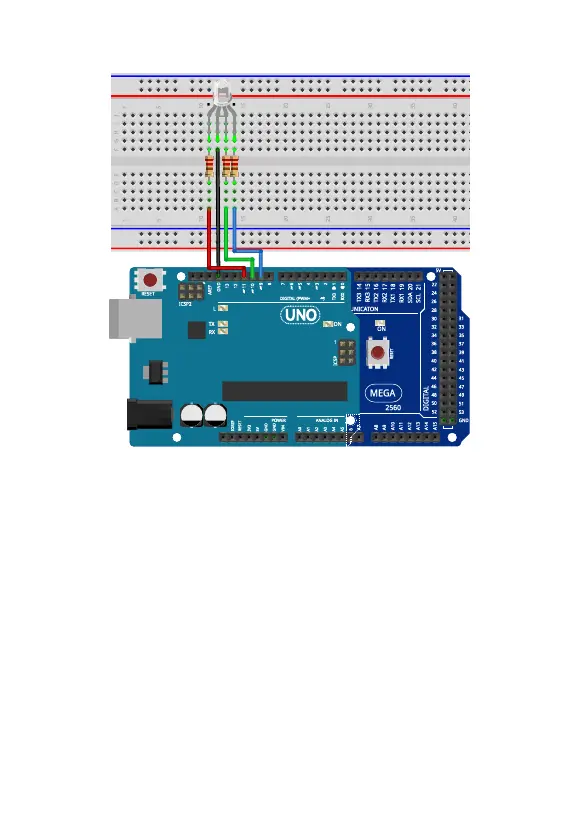

Wiring Diagram
Result
The RGB LED emit red, green, blue, yellow, white and purple light. Each color will last for 1s
then change to another color in turns.
