Uctronics Ultimate Starter Kit for Arduino User Manual

71
Lesson 30 Controlling Stepper Motor with Remote
Overview
In this lesson, you will learn a fun and easy way to control a stepper motor from a distance
using an IR remote control.
Components Required
Name Qty Name Qty
UNO R3 or MEGA 2560 1 Stepper Motor 1
IR Receiver Module 1
ULN2003 Stepper Motor
Driver Module
1
IR Remote Controller 1 Power Supply Module 1
9V1A Adapter 1 Breadboard 1
DuPont Wire 15

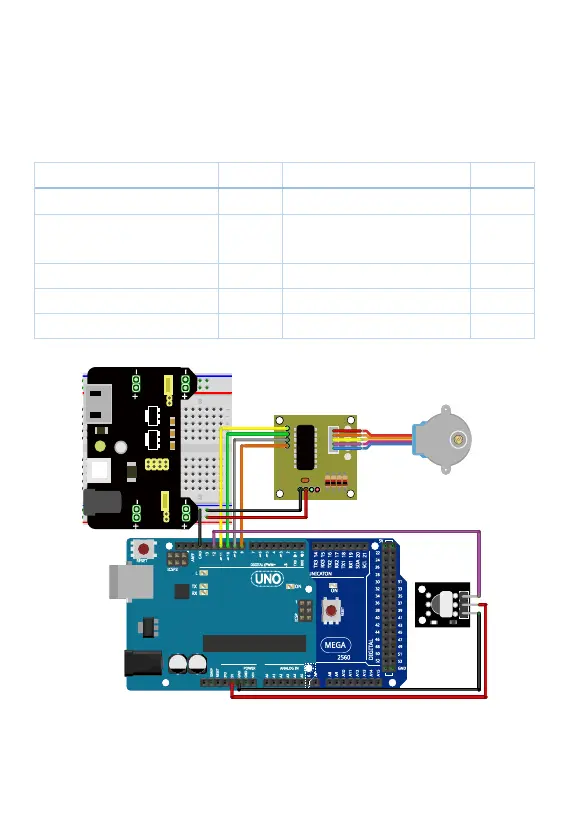

Wiring Diagram
Result
When you press the key “1” on the IR remote controller, the stepper motor will rotate for two
seconds. When you press key “2”, it will rotate in opposite direction for two seconds.
