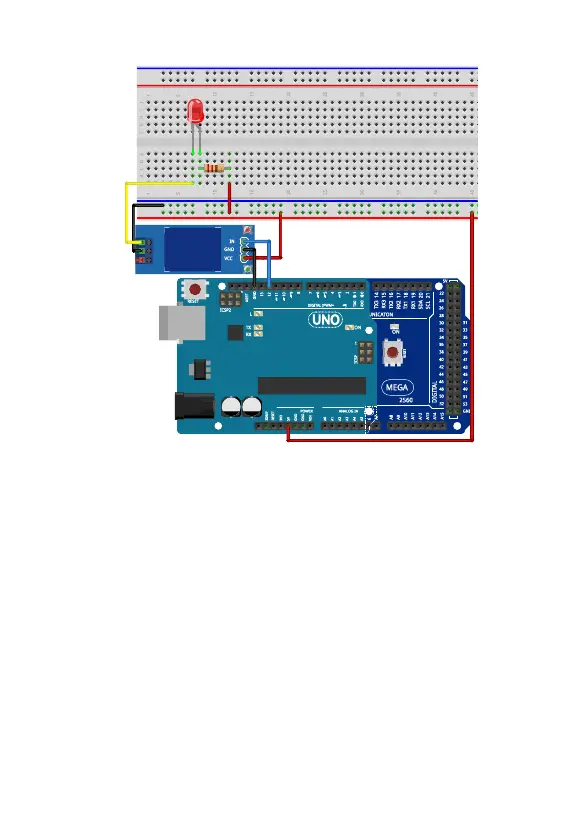

Wiring Diagram
Result
The LED is lit. When a little sound is from the terminal connection, the port COM is connecting
to the port NO at the same time. The LED will be turned off after 2s, and then the port COM
is connecting to the port NC.
