39

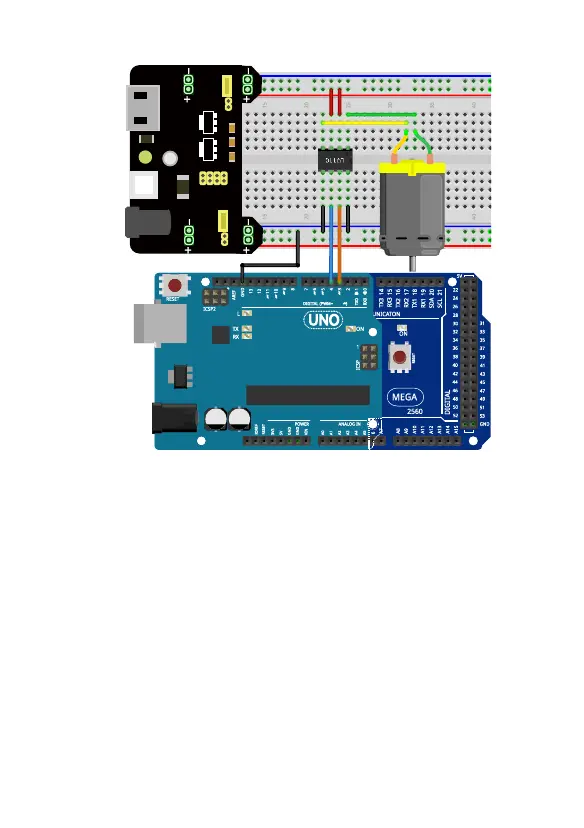

Wiring Diagram
Result
The DC motor rotates in clockwise direction for 1s, and then rotates in counterclockwise for
1s. The action will continue to cycle. And keep on rotating like this way again and again.
