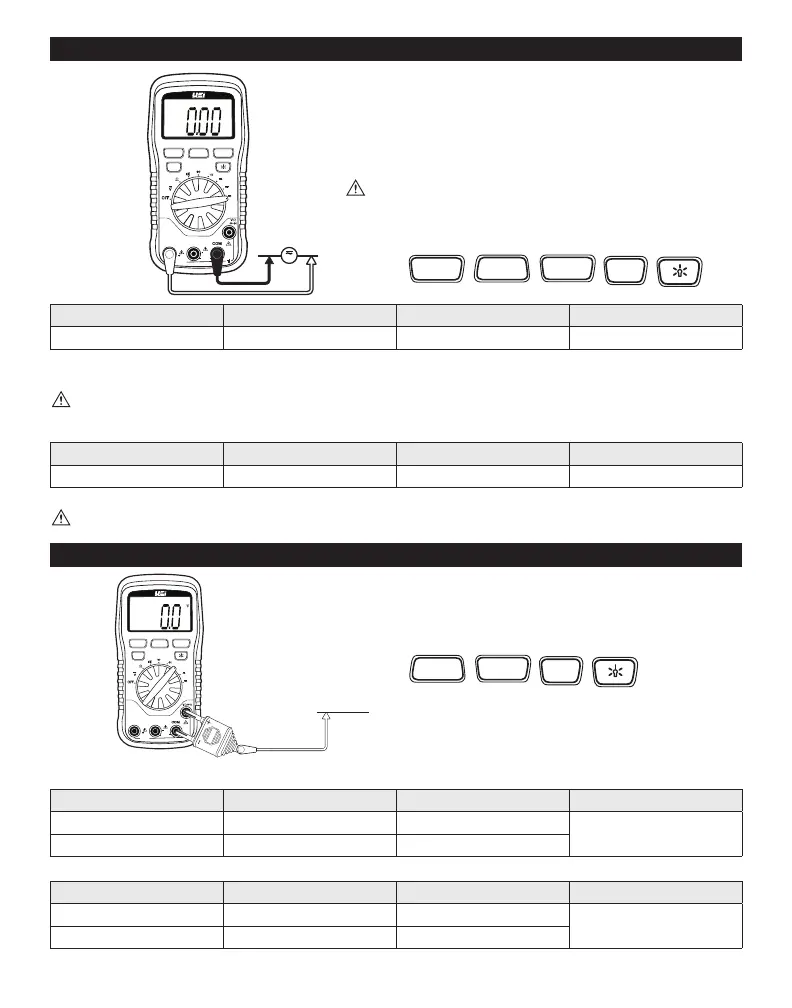

UEi DM515 User Manual

10
WARNING
Keep hands behind test lead guards when measuring current levels.
• Do not attempt to measure more than 10A AC.
Features:
RANGE
MIN/MAX
HOLD
SEL
AC AMPS
Ranges Accuracy Resolution Overload Protection
6A to 10A ±(1.5% +5 dgts) 0.001A to 0.01A 11A/1000V Fast fuse
Minimum sensitivity: 500mA AC (auto selection mode only)
Frequency Bandwidth: 500Hz
CAUTION : 20A overload for 30 seconds max.
DC AMPS
Ranges Accuracy Resolution Overload Protection
6A to 10A ±(1.2% +5 dgts) 0.001A to 0.01A 11A/1000V Fast fuse
Minimum sensitivity: 500mA DC (auto selection mode only)
CAUTION : 20A overload for 30 seconds max.
°F
Ranges Accuracy Resolution Overload Protection
-328˚ to 999˚F ±(1.5% + 3.6˚F) 0.1˚F
600V
1000˚ to 2462˚F ±(1.5% + 3.0˚F) 1˚F
°C
Ranges Accuracy Resolution Overload Protection
-200˚ to 999˚C ±(1.5% + 2.0˚C) 0.1˚C
600V
1000˚ to 1350˚C ±(1.5% + 2.0˚C) 1˚C
• Press Select button to change scale between Fahrenheit and Celsius.
Features:
MIN/MAX
HOLD
SEL
AC/DC Amps: <10A
Temperature C˚/F˚
RANGE
SEL
MIN/MAX HOLD
FAST
V
Apo
A
µA
mAµA
A
mA
10A
MAX
FUSED
400mA
MAX
FUSED
MAX
CAT III
600V
CAT II
1000V
DM505
A
µA
mA
A
Apo
AT
DM515
A
RANGE
SEL
Temp
A
True RMS
MIN/MAX HOLD
FAST
V
Apo
µA
mAµA
A
mA
10A
MAX
FUSED
400mA
MAX
FUSED
MAX
CAT III
600V
CAT II
1000V
DM515
°F°C
µA
A
mA
°F°C
Apo
AT
DM515
Default = ˚F
Press x1 = ˚C
