UEi DM515 User Manual

6
AC/DC Voltage: <1000V AC/DC
AC VOLTS
Ranges Accuracy Resolution Overload Protection
600mV to 1000V
45Hz to 500Hz 500Hz to 1kHz
0.1 mV to 1V 1000V
±(1.0% +3 dgts) ±(2.0% +3 dgts)
Minimum sensitivity: 0.5V AC (auto selection mode)
DC VOLTS
Ranges Accuracy Resolution Overload Protection
600mV to 1000V ±(0.5% +3 dgts) 0.1 mV to 1V 1000V
Minimum sensitivity: 0.5V DC (auto selection mode)
WARNING
• Use CATIII rated Test leads or higher.
• Do not attempt to measure more than 1000V AC/DC.
• Do not exceed 25 volts AC or 60 volts DC – RMS at either the common
or multifunction input ports as measured from earth ground.
Features:
RANGE
MIN/MAX
HOLD
SEL
RANGE
SEL
Temp
A
True RMS
MIN/MAX HOLD
FAST
V
Apo
µA
mAµA
A
mA
10A
MAX
FUSED
400mA
MAX
FUSED
MAX
CAT III
600V
CAT II
1000V
DM515
°F°C
V
Apo
AT
DM515

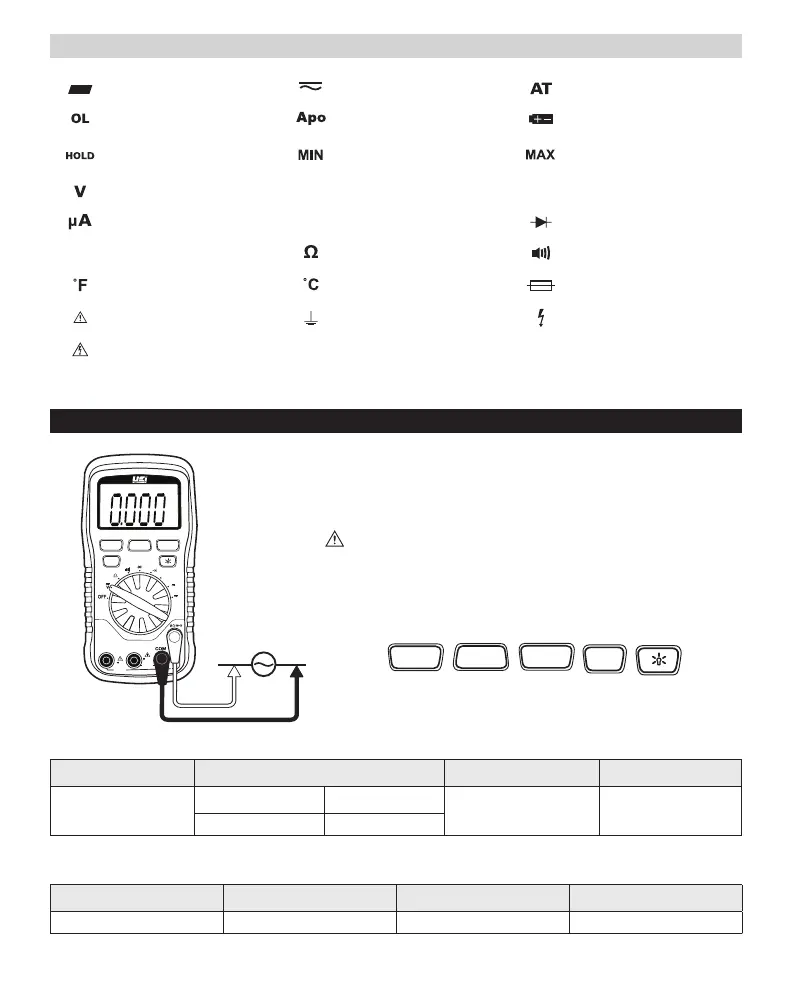

SYMBOLS
Negative AC/DC Voltage or Current Auto-ranging
Overload: Range Exceeded Auto power off Active Low Battery
Hold/Capture Value
Minimum measured
value displayed
Maximum measured
value displayed
Voltage
A
Amps
µF
Microfarad
Microamps mA Milliamps Diode
nF
Nano Farads Ohms/Resistance Continuity
Degrees Fahrenheit Degrees Celsius Fuse
Warning or Caution Ground High Voltage Indication
Dangerous Levels
Auto
Auto Selection
