UEi DM515 User Manual

5
OVERVIEW
RANGE
SEL
Temp
A
True RMS
MIN/MAX HOLD
FAST
V
Apo
µA
mAµA
A
mA
10A
MAX
FUSED
400mA
MAX
FUSED
MAX
CAT III
600V
CAT II
1000V
DM515
°F°C
B
A
C
G
J
K
L
M
N
O
H
E
F
I
D

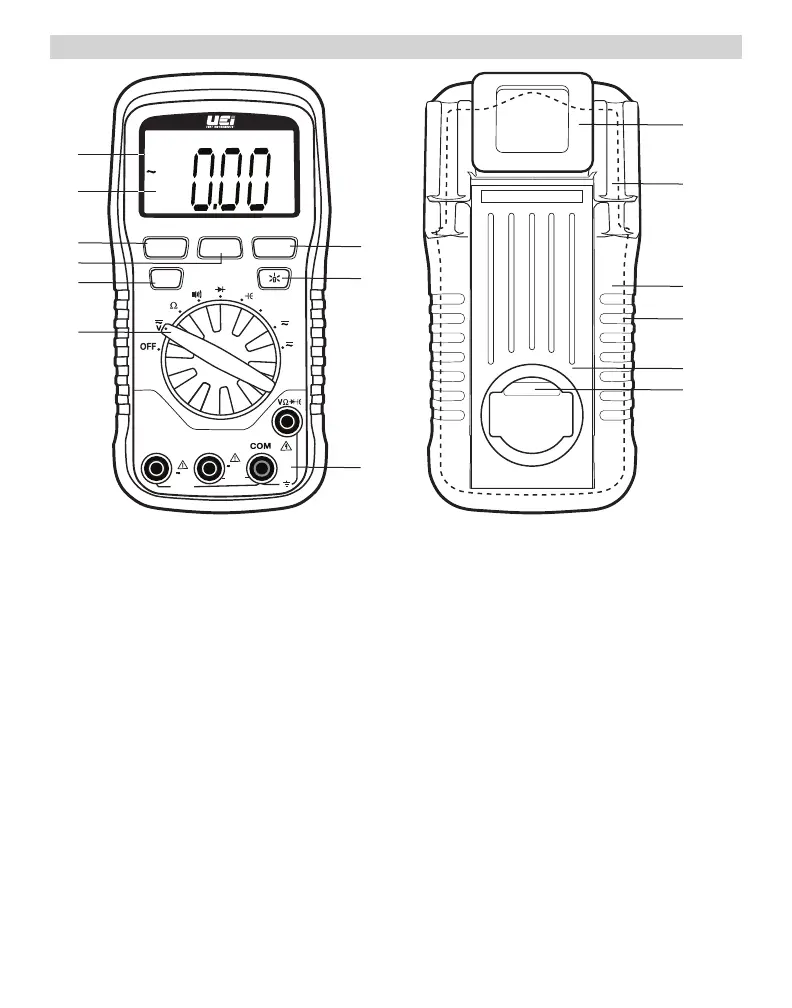

A. Apo: Auto power off after 30 minutes of use. Press
and hold the HOLD button while turning the meter on
to disable Apo.
B. Digital Backlit Display
C. Range Button
• Press to change from auto ranging to
manual ranging.
• Press repeatedly to select proper range.
• Press and hold to return to auto range
(AT will be displayed on screen).
D. Min/Max Button
• Press to enter MAX/MIN mode.
• In the V, μA, mA or Amps function, either select
AC/DC or change to manual ranging before pressing
this button to enter MAX/MIN mode.
• Press repeatedly to alternate between Maximum and
Minimum readings.
• Press and hold to return to live readings.
E. Select Button:
• Press to select AC, DC or Auto Selection in the
following functions: Voltage, μA, mA, Amps.
• Press to select °C or °F in the T
emperature function.
F. Function Dial: Turns on meter and is used to select
the function.
G. Hold/Fast Button
• Press to hold the reading on the display. Press again
to return to live reading.
• Press to enter Fast MAX/MIN mode in
MAX/MIN mode.
• Press again to return to normal MAX/MIN mode.
H. Back Light Button: Press to on back light. Press again
to turn off. Back light duration is 1 minute.
I. Category Max Indicator: Maximum CAT Rating for
fused input jacks.
• Multifunction input port used for measuring: AC or
DC volts, resistance, continuity, diode, capacitance
µA,.mA, Amps, T
emperature.
• Use CA
TIII test leads or higher
J.
Recess for magnetic hanger
K. T
est Lead Holders
L.
Protective Rubber Boot
M. Battery Cover (under protective rubber boot)
N. Kick Stand
O. Serial Number (under kick stand)
