S9510-28DC Hardware Installation Guide | 4
•

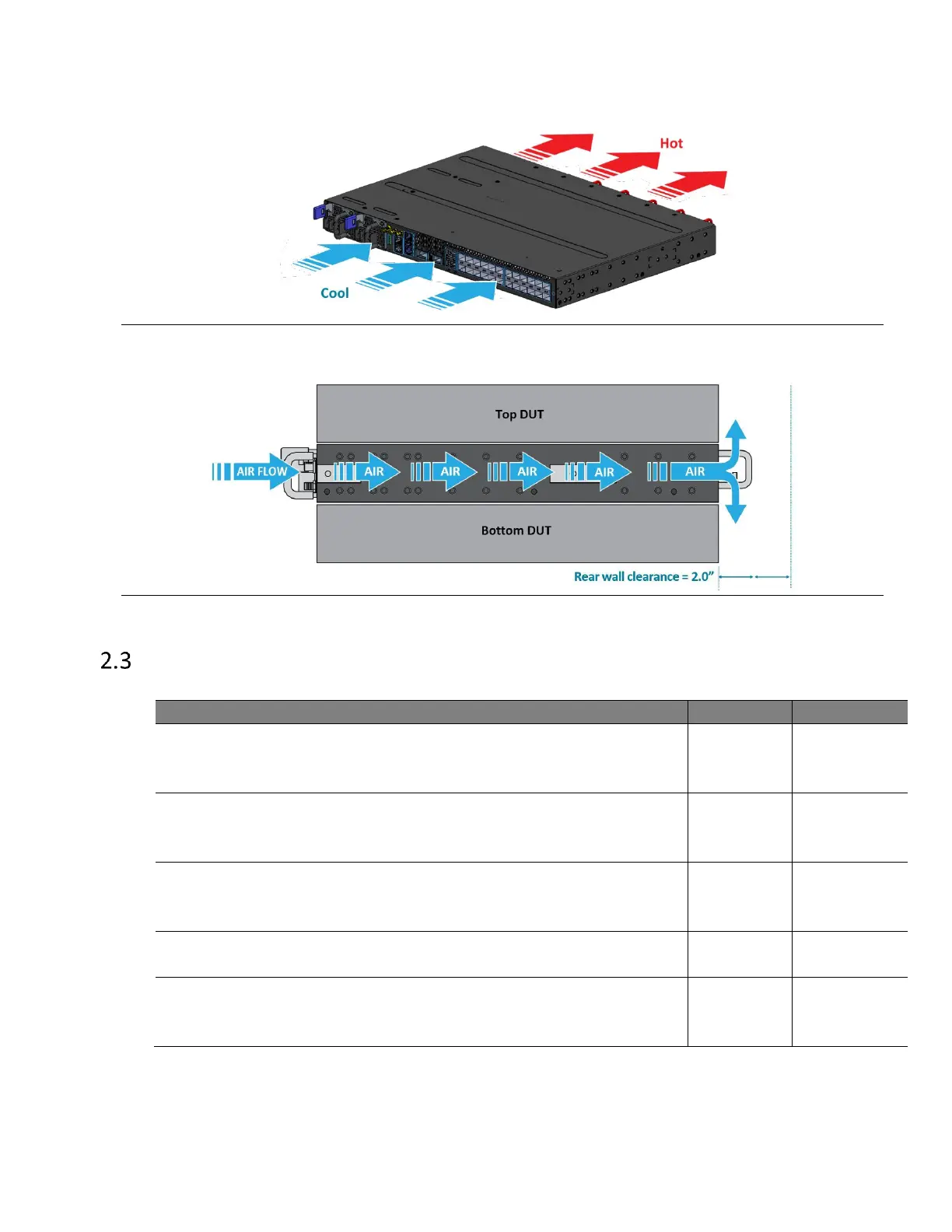

Cooling: The S9510-28DC airflow direction is front-to-back. Make sure the equipment on
the same rack have the same airflow direction.
Figure 4.
Preparation Check List
Power voltage and electric current requirement
DC version: -48V DC, 16-8 ampere maximum or;
AC version: 100-240V, 6-3 ampere
Installation spacing and weight load requirement:
S9510-28DC is 1RU (1.75”/4.5cm) in height, 19” (48.3cm) in width,
and 16” (40.6cm) in depth without considering cable routing
Thermal requirement
S9510-28DC working temperature is -40 to 65°C (-40°F to 140°F),
airflow direction is front-to-back
Installation tools required
#2 Philips Screwdriver, 6-AWG wire stripper, and crimping tool
Accessories required
PC with terminal emulation software, console cable, 14-AWG wire
with ring terminal for power, 6-AWG wire for grounding
