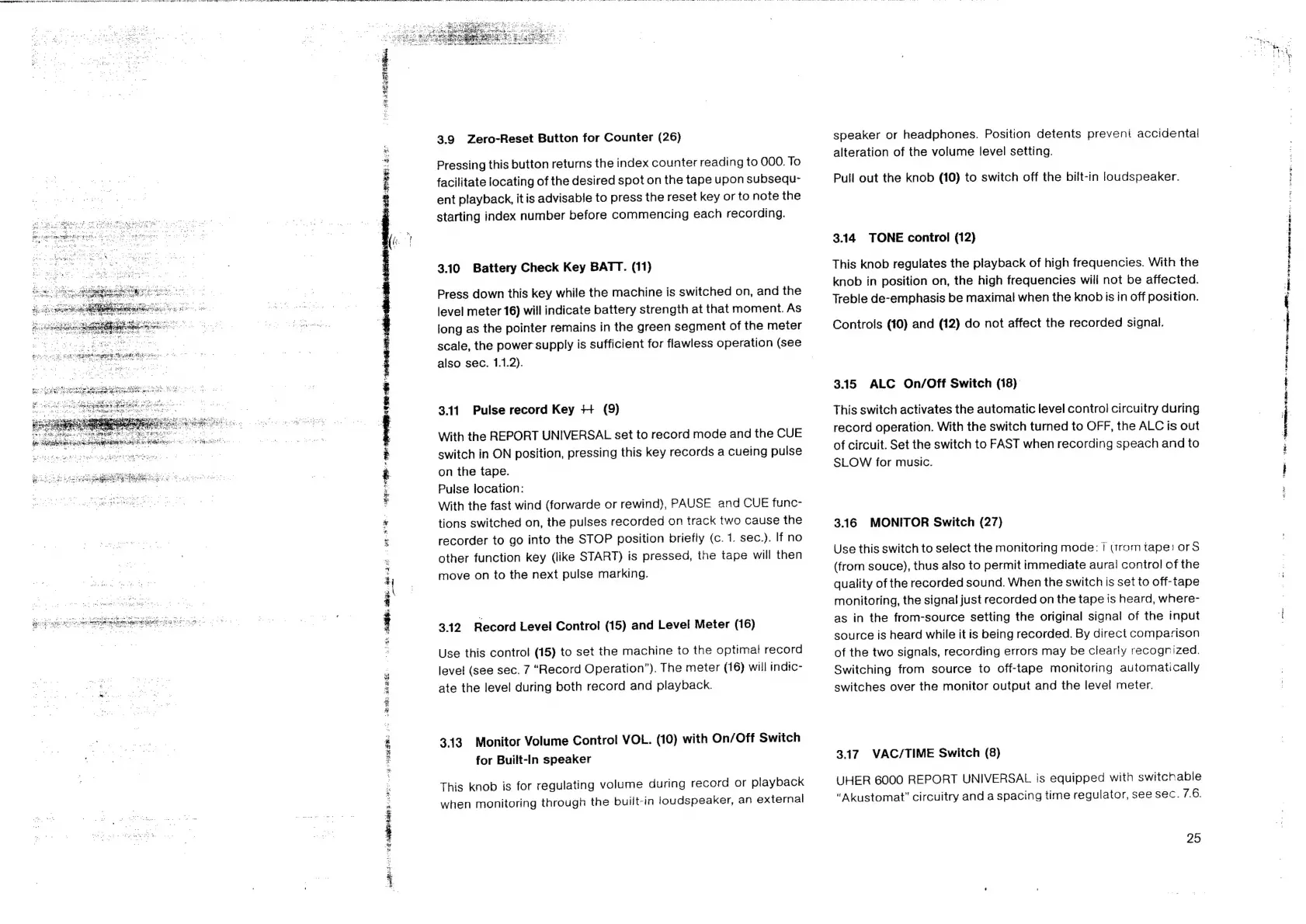

3.9
Zero-Reset
Button
for
Counter
(26)
Pressing
this
button
returns
the
index
counter
reading
to
000.
To
facilitate
locating
of
the
desired
spot
on
the
tape
upon
subsequ-
ent
playback,
it
is
advisable
to
press
the
reset
key
or
to
note
the
starting
index
number
before
commencing
each
recording.
3.10 Battery Check Key BATT. (11)
Press
down
this
key
while
the
machine
is
switched
on,
and
the
level
meter
16)
will
indicate
battery
strength
at
that
moment.
As
long
as
the
pointer
remains
in
the
green
segment
of
the
meter
scale,
the
power
supply
is
sufficient
for
flawless
operation
(see
also
sec.
1.1.2).
3.11 Pulse record Key +4 (9)
With
the
REPORT
UNIVERSAL
set
to
record
mode
and
the
CUE
switch
in
ON
position,
pressing
this
key
records
a
cueing
pulse
on
the
tape.
Pulse location:
With
the
fast
wind
(forwarde
or
rewind),
PAUSE
and
CUE
func-
tions
switched
on,
the
pulses
recorded
on
track
two
cause
the
recorder
to
go
into
the
STOP
position
briefly
(c.
1.
sec.).
If
no
other
function
key
(like
START)
is
pressed,
the
tape
will
then
move
on
to
the
next
pulse
marking.
312
Record
Level
Control
(15)
and
Level
Meter
(16)
Use
this
control
(15)
to
set
the
machine
to
the
optimal
record
level
(see
sec.
7
“Record
Operation”).
The
meter
(16)
will
indic-
ate
the
level
during
both
record
and
playback.
3.13
Monitor
Volume
Control
VOL.
(10)
with
On/Off
Switch
for
Built-In
speaker
This
knob
is
for
regulating
volume
during
record
or
playback
when
monitoring
through
the
built-in
loudspeaker,
an
external
speaker or headphones. Position detents prevent accidental
alteration of the volume level setting.
Pull out the knob (10) to switch off the bilt-in loudspeaker.
3.14 TONE control (12)
This knob regulates the playback of high frequencies. With the
knob in position on, the high frequencies will not be affected.
Treble de-emphasis be maximal when the knob is in off position.
Controls (10) and (12) do not affect the recorded signal.
3.15 ALC On/Off Switch (18)
This switch activates the automatic level contro! circuitry during
record operation. With the switch turned to OFF, the ALC is out
of circuit. Set the switch to FAST when recording speach and to
SLOW for music.
3.16 MONITOR Switch (27)
(from souce), thus also to permit immediate aural control of the
quality of the recorded sound. When the switch is set to off-tape
monitoring, the signal just recorded on the tape is heard, where-
as in the from-source setting the original signal of the input
source is heard while it is being recorded. By direct comparison
of the two signals, recording errors may be clearly recognized.
Switching
from
source
to
off-tape
monitoring
automatically
switches over the monitor output and the level meter.
3.17 VAC/TIME Switch (8)
UHER
6000
REPORT
UNIVERSAL
is
equipped
with
switchable
“Akustomat”
circuitry
and
a
spacing
time
regulator,
see
sec.
Lo:
29
Tra...
