The D20 holes are mainly used for the connection of
secondary components, i.e., bracing items.

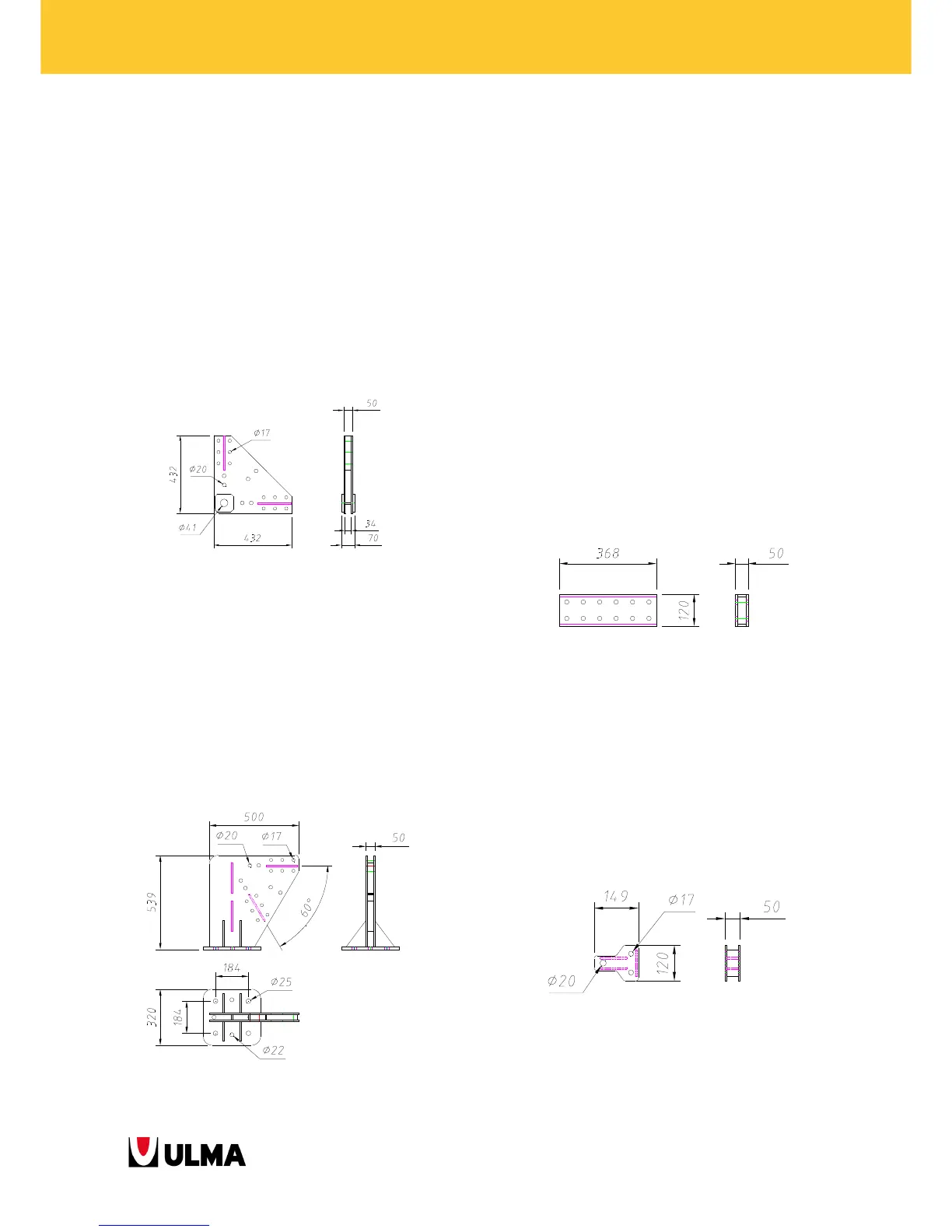

2.2.7. NODE 90 MK
These nodes enable to connect up to 2 walers at 90º.
The connections are fastened with 6 bolts M16
inserted into the D17 holes.
The D20 holes are mainly used for the connection of
secondary components, i.e., bracing items.
2.2.8. NODE 60 SUPPORT MK
The Node 60 Support MK is a kind of foot to support
the structure on something, mainly on profiles. It
works as support of a bi-supported truss.
It enables to connect up to 2 walers at 60º as the
Node 60 MK does. The connections are fastened with
6 bolts M16 inserted into the D17 holes.
The support plate provides D25 (25 mm diameter)
and D22 holes to connect other items and
accessories.
2.2.9. ORTHOGONAL JOINT MK
The Orthogonal Joint MK connects up to 3 walers
perpendicular to each other. The connection with the
waler is fastened with 4 bolts M16 inserted into the
D17 holes.
It can also connect 2 walers lengthwise. In this case,
each waler is fastened with 6 bolts M16 inserted into
the D17 holes .
This connector has medium load-bearing capacity
and is mainly used in light form carriers.
2.2.10. AXIAL NODE M D20 MK
This node enables to connect one waler to another in
a hinged way, always in the main plane. The waler
and the node are fastened with 2 bolts M16 inserted
into the D17 holes. Unlike the Axial Node M D40,
this one does not have high load-bearing capacity.
The hinged connection between the waler and the
node is fastened with pins E20x70.
