Ultimate UHC4 User Manual

4

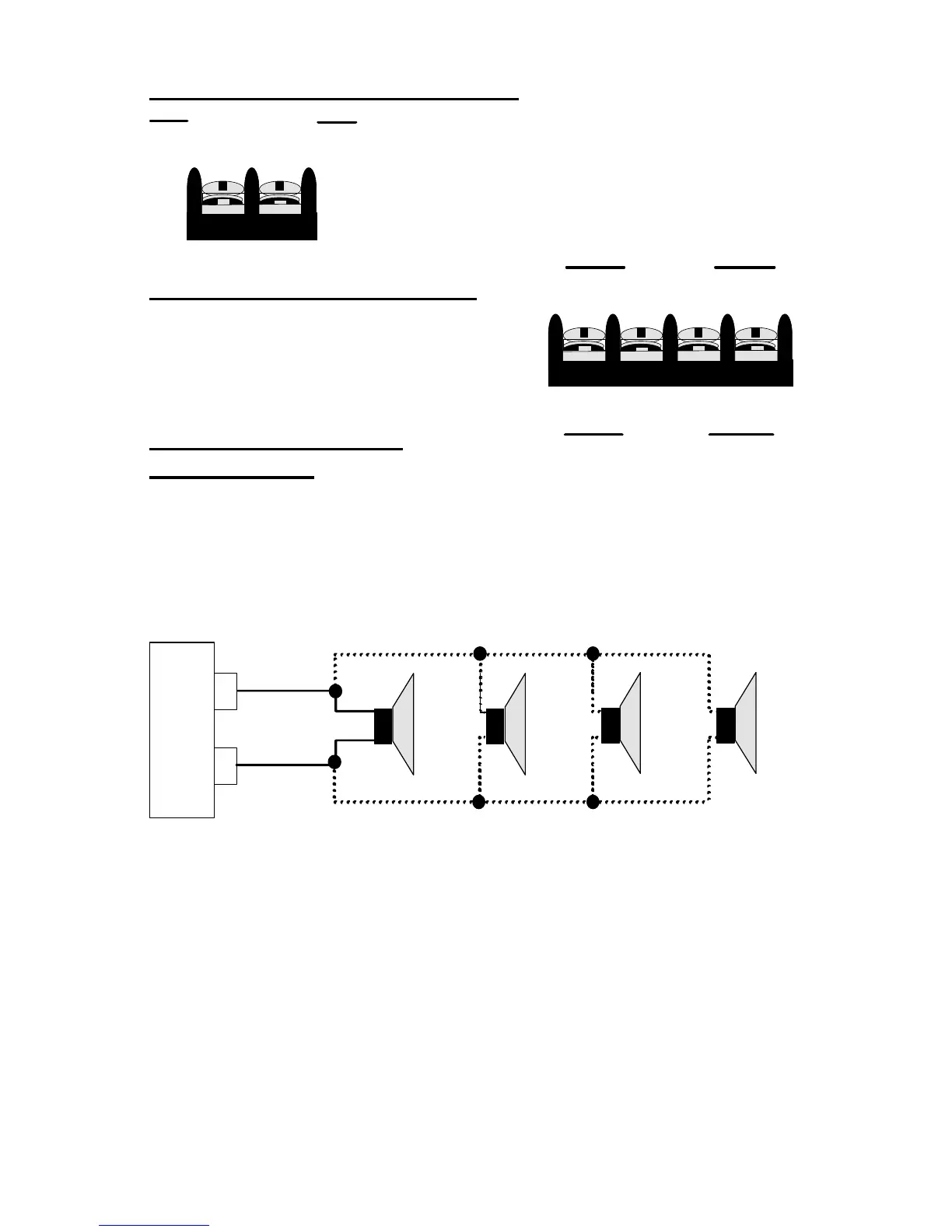

UHC5-UHC5- SUBWOOFER TERMINALS
Follow the polarity(+) (-) markings first. You
may want to experiment with reversing the (+)
and (-) connections to see which way sounds
best. The subwoofer channel is 1Ω stable, and
can drive up to four 4Ω subwoofers connected
in parallel.
UHC2UHC2- - SPEAKER TERMINALS
Follow the left, (L+) (L-), and right, (R+) (R-
), channel and polarity markings, making sure
they match the channel and polarity of the
connections at the speakers.
MULTIPLE SPEAKER
CONNECTION
PARALLEL- Each additional speaker decreases the load impedance
for the amplifier. The amplifier delivers more current and works
harder.
SERIES- Each additional speaker increases the load impedance for
the amplifier. Impedances higher than 8 ohms are rarely used for car
audio.
SUBWOOFER
(+) (-)
(L+) (L-) (R+) (R-)
( + ) ( - )
BRIDGE
SPEAKER
(+)
(
-
)
+
-
(+)
(
-
)
(+)
(
-
)
(+)
(
-
)
4 Ohm 1 Ohm1.3 Ohm2 Ohm
PARALLEL CONNECTION USING 4 OHM SPEAKERS
A
M
P
L
I
F
I
E
R
O
U
T
P
U
T
