INSTALLING THE PIRANI GAUGE
- 10 -

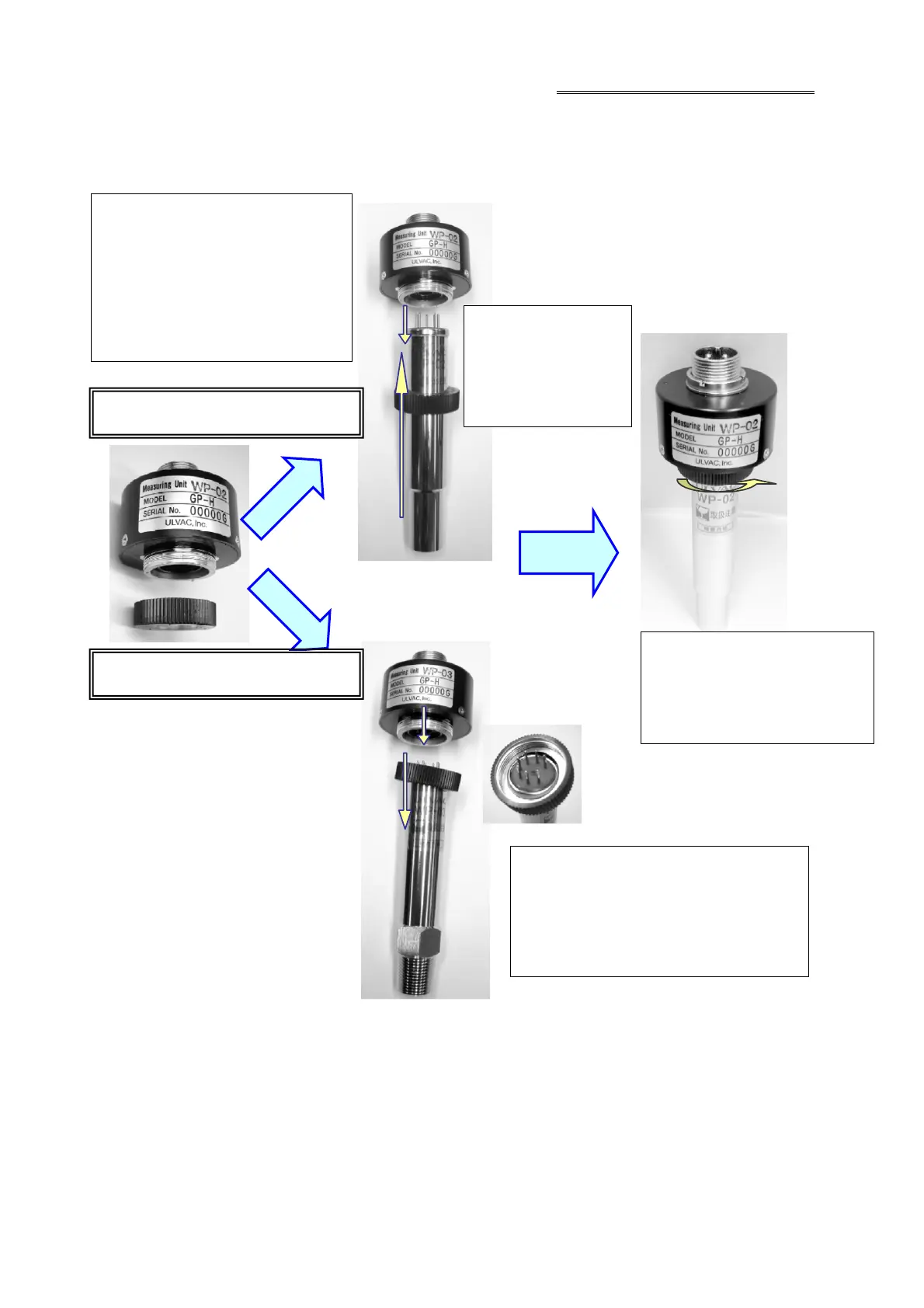

2.2.5. A sensor head installation method to GP-H
Caution: The installation methods of a screw for fixation are different by a sensor head.
①Install a screw for fixation
that is attached to GP-H to a
sensor head. By the kind of the
sensor head, installation
methods are different
For sensor head WP-01, 02
For sensor head WP-03, 16
It is inserted a
screw for fixation
by the vent side of
the sensor head.
②
Tighten a screw for
fixation in the main body of
GP-H, and please fix it.
Insert a screw for fixation from the
connector side of the sensor head.
Please insert it diagonally like a
figure.
