3. Connector Specifications

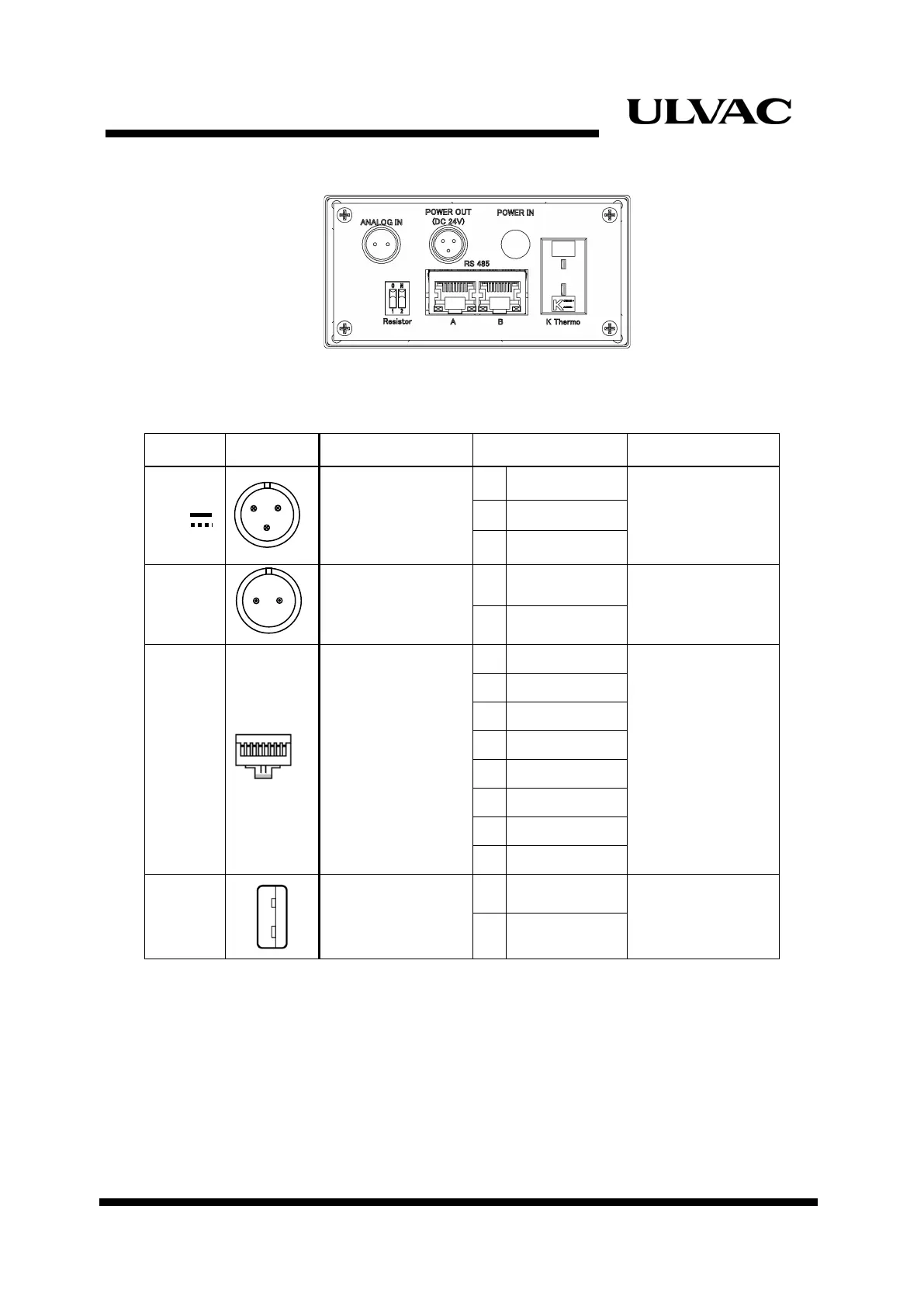

Figure 3-1
MBD-D Rear Panel
Table 3-1 Connectors Input / Output Pins
Item
Receptacle
Pin
Compatible Plug Assignment Function
POWER
OUT
24V
R03-PB3M
or
R03-P3M
(Cables are optional)
A +24V
MBS/MBS-C
24V Power Output
B No Connection
C 0V
ANALOG
IN
R03-PB2F
or
R03-P2F
(Cables are optional)
A + INPUT
Analog signal input
from MBS/MBS-C
+5 – 0V /10 – 350K
B
- ACOM
RS 485
(A/B)
RJ-45
1 No Connection
For communication
via RS485(Modbus)
2 No Connection
3 No Connection
4 D+
5 D-
6 No Connection
7 No Connection
8 No Connection
K Theｒmo SMPW-K-M
+ Chromel
For K Thermocouple
- Alumel
A
B
A
B
C
A
B
A
B
C
+
-
8 7 6 5 4 3 2 1
