13
8
9
10
1112

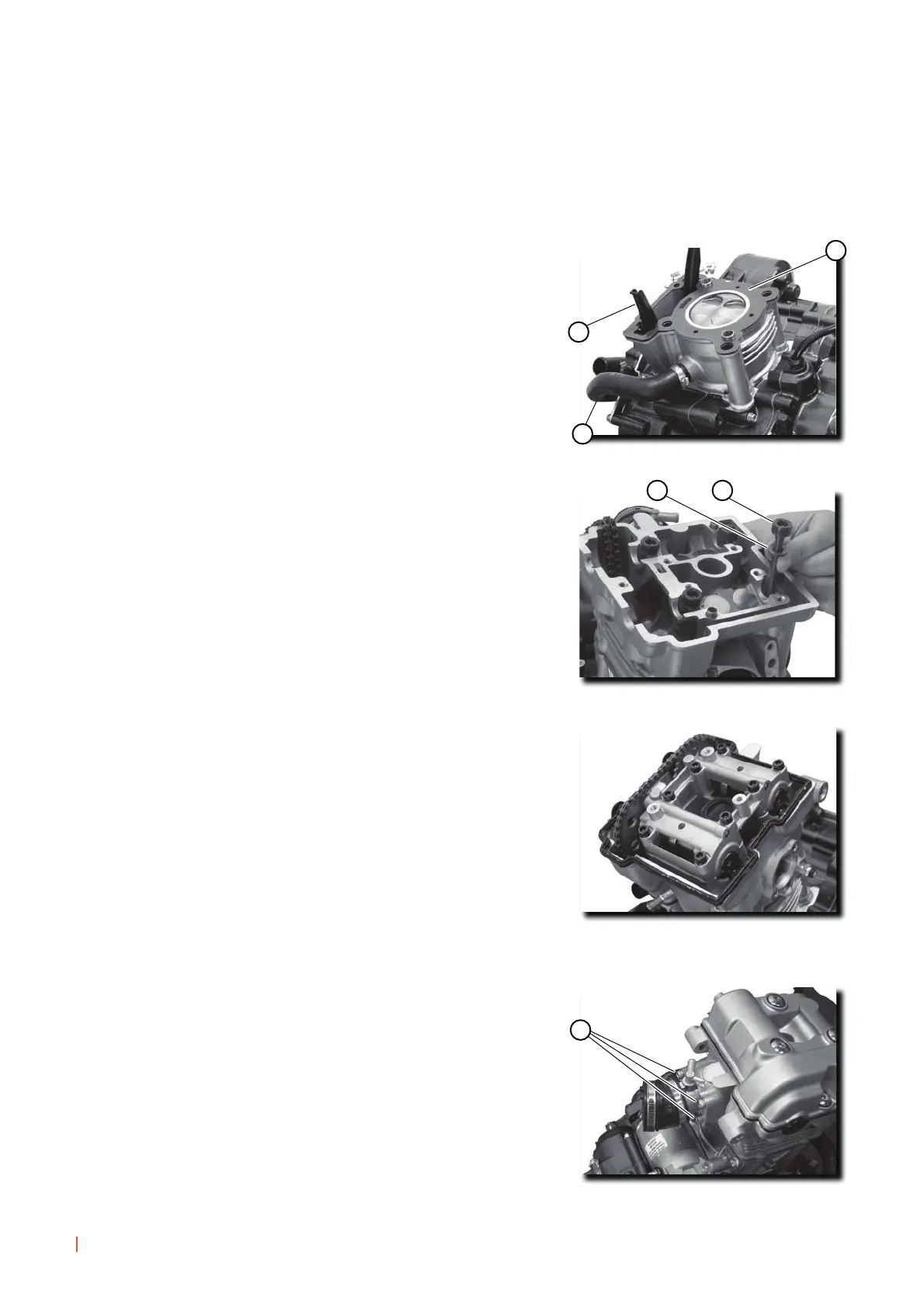

Fit:
- The front timing chain roller (8).
- The top gasket (9) (new gasket).
- The coolant pipe (10).
Fit:
- The cylinder head.
N.B.:
APPLY OIL TO THE WASHERS OF THE 4 BOLTS JOINING THE
CYLINDER HEAD TO THE CRANKCASE.
Fit:
- The 6 bolts (11) and the 4 washers (12) securing the
cylinder head to the cylinder.
The bolts securing the cylinder head to the cylinder.
1,1-1,3 kgf.m (11-13 N.m)
Fit:
- The camshaft (see chapter).
Fit:
- The inlet manifold, using the 3 bolts (13).
Inlet manifold bolts:
1,1-1,3 kfg.m (11-13 N.m)
87
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
