UNI-T UT131 Series - AC;DC Voltage Measurement

UT131 Palm Size Multimeter
-10-
voltage or current must not exceed the values listed on the device.

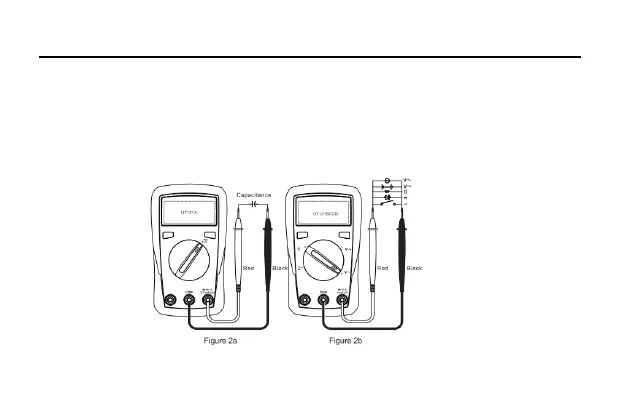

1. AC/DC voltage measurement (see Figure 2b)
1) Switch the dial to “V~” position.
2) Insert the black test lead into the COM jack, the red test lead into the “VΩmA” jack. Connect
test leads with the load in parallel.
