UNI-T UT202A User Manual

87
UT202A Operating Manual

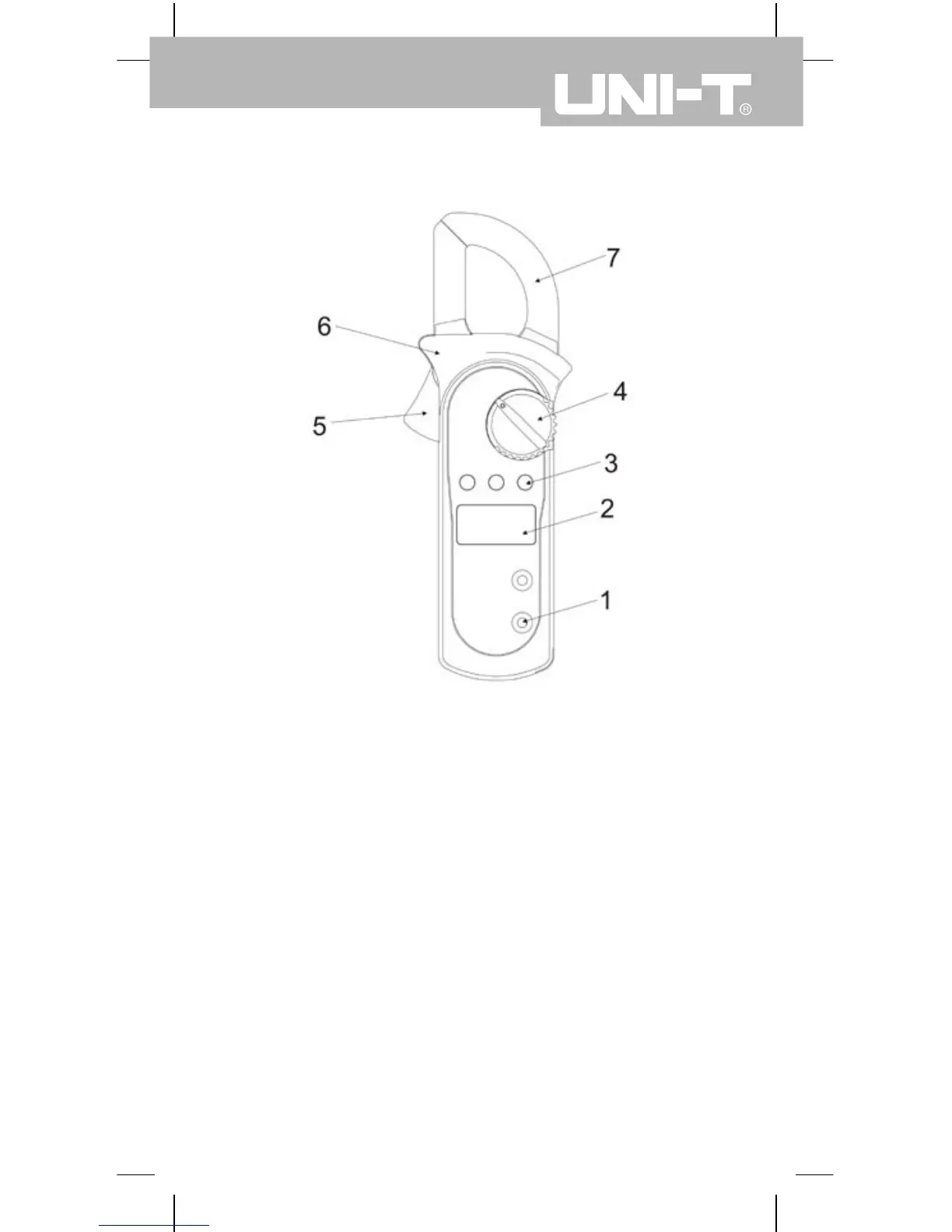

The Meter Structure (see gure 1)
1. Input Terminals
2. LCD Display
3. Functional Buttons
4. Rotary Switch
5. Trigger: press the lever to open the
transformer jaws. When the pressure on the
lever is released, the jaws will close.
6. Hand Guards: to protect user’s hand from
touching the dangerous area.
7. Transformer Jaws: designed to pick up the
AC current owing through the conductor.
It could transfer current to voltage. The
tested conductor must vertically go through
the jaw center.
(gure 1)

UNI-T UT202A Specifications

General

AC voltage	600 V
Resistance (max)	0.02 Ω
Measuring category	CAT II 600V, CAT III 300V
Battery voltage	9 V
Test leads	Yes
Certification	CE, RoHS
Product color	Black, Red

Weight and Dimensions

Depth	30 mm
Width	75.6 mm
Height	210 mm
Weight	220 g
