IV.INSTRUMENT STRUCTURE
Vibration acceleration
Vibration speed
Vibration displacement
1.
2.
3.
Vibration acceleration
Vibration speed
Vibration displacement
V.INSTRUMENT SETUP AND OPERATION
Please do not detach shell of vibration meter to avoid damage.
Please do not try to charge battery to avoid personal injury due to battery explosion. Please
pay attention to + and - poles during battery installation.
Please pay attention to protect LCD of vibration meter to avoid scratch or crush.

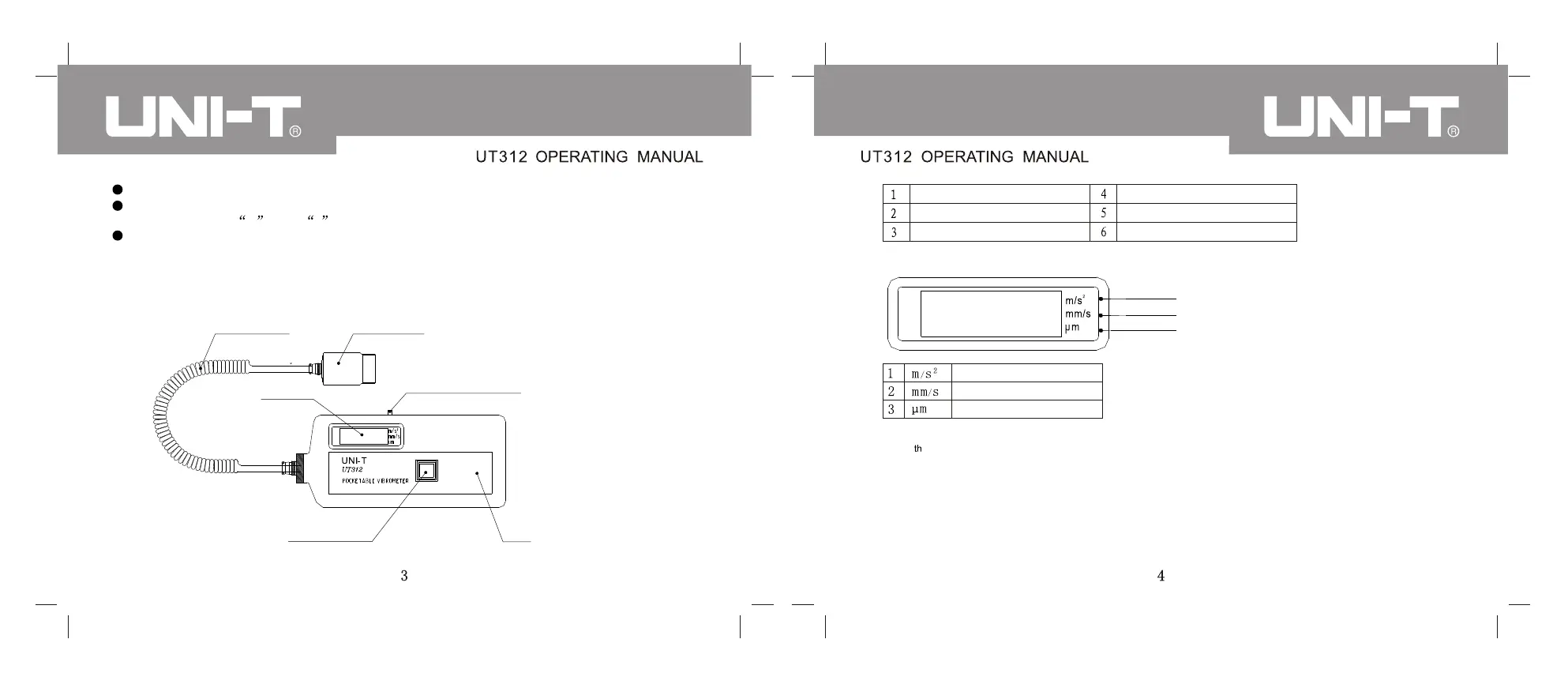

1. Instrument structure (shown in Figure 1 and Form 1)
1.Signal wire of sensor
2.Sensor
3. LCD
4.Three-gear toggle switch
5.Shell
6.Measurement key
signal wire of sensor
sensor
LCD
three-gear toggle switch
shell
measurement key
2. Symbol (shown in Figure 2 and Form 2)
3. Key instructions (shown in Figure 1)
The 5 element shown in Figure 1: Measurement key button
1.Battery installation
Please open cell box on the instrument back and then install 6F22 type 9V laminated cell into
cell box. Please pay attention to polarity then cover it.
To Next Page
