Measurement Operation (15)
G. The Model UT33B: Battery Test (see figure 7)
To avoid harms to you or damages to the Meter,
please do not attempt to input voltages higher
than 60V in DC or 30V in AC.
Warning

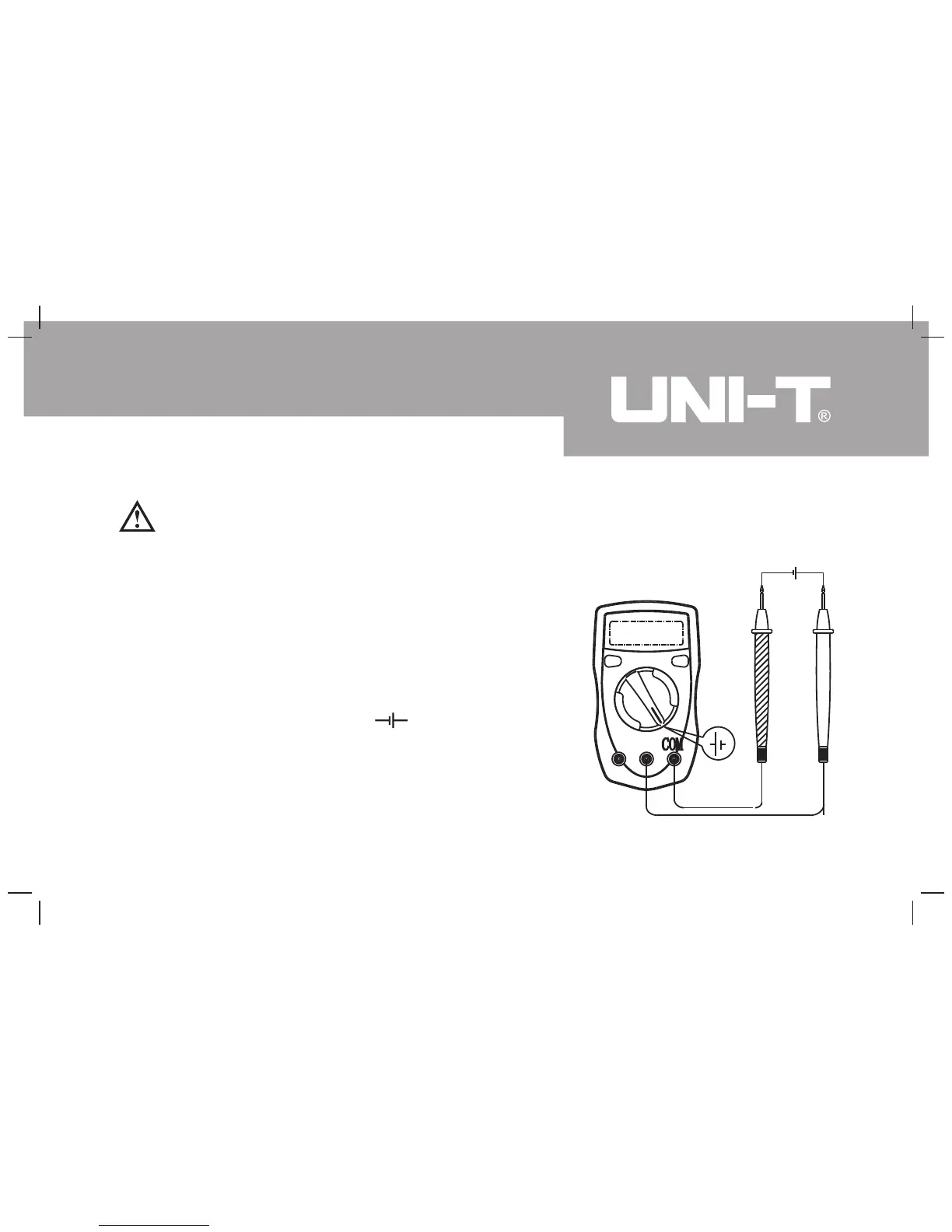

( figure 7)
To test the battery, proceed as follows:
1. Insert the red test into the VmA terminal and
the black test leads into the COM terminal.
2. Set the rotary switch to an appropriate
measurement position in range.
3. Connect the test leads across with the battery
being measured ensuring the polarity is correct.
The measured value shows on the display, which
is the voltage between the cathode and anode of
the battery.
27
Model UT33B/C/D: OPERATING MANUAL
