Model UT804: OPERATING MANUAL
mA

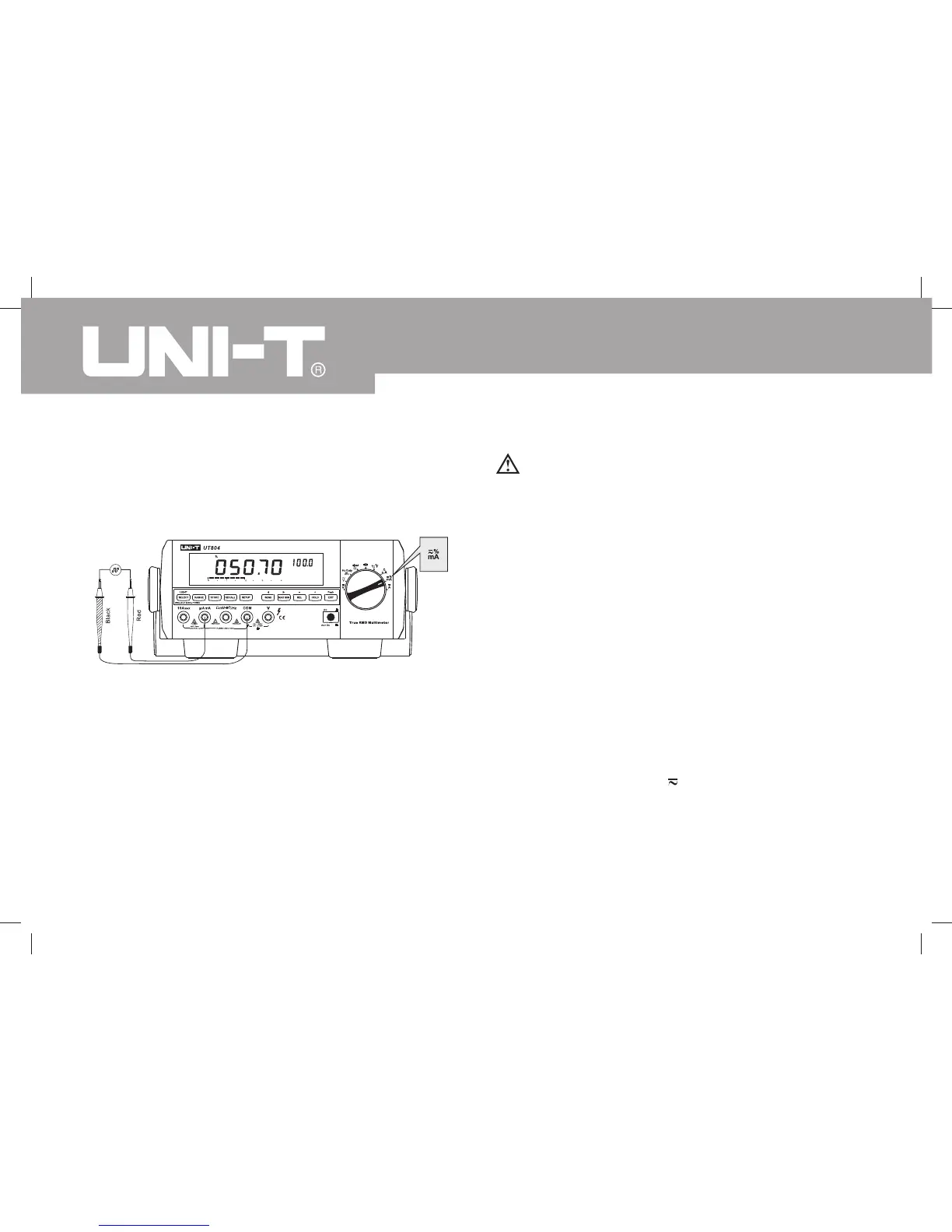

Figure 3-16. 4~20mA loop current as % readout
K. 4~20 mA loop current as % readout
Warning
To avoid electric shock, please take extra care during
measurement.
To avoid harms to the Meter and yourself, never
input higher than 250V from socket, although
readings may be obtained.
Before the Meter and the tested object are connected
to the to be tested return circuit, turn the return
circuit power off.
It shows the mA measured value or output level in %,
in a 4-20mA scale
To use 4~20mA Loop feature, connect the Meter as
follows:
1. Set the rotary switch to %, and press SELECT
button to select (4~20mA) % feature.
2. The rest procedure, please follow D. Measuring
Current: DC current measurement.
To Next Page
