3.11 - SERVICE PANEL
Boiler can be controlled also via
service terminal
Information on programming with service
panel can be found on the website at the
address given on page 2.
Note: Simbol D - B - C is only rapresen-
ted in design, is not printed in the panel.
It is located inside the boiler and allows
to make some operations for the exclu-
sive use of the Authorized Service
Centers.

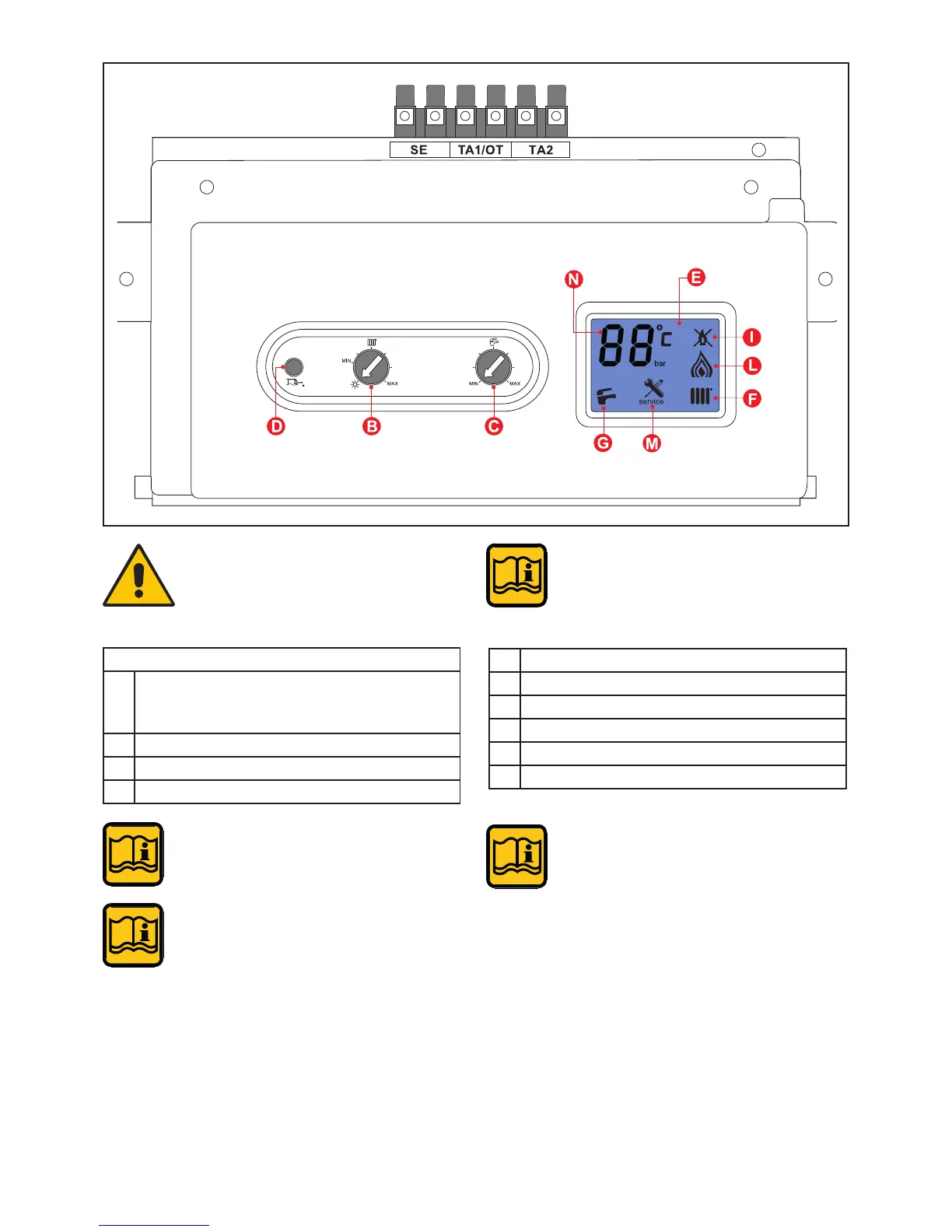

KEY
B Summer/Winter Selector + Room heating
temperature regulator (request from ON-OFF
thermostat)
C Domestic hot water temperature regulator
D Unblock/calibration/diagnosis button
E Display info
F Heating function active
G Domestic hot water function active
I Block symbol
L Burner in operation symbol
M Fault symbol
N Temperature of fault code indication
If remote control is connected, is not
possible to change the ACS tempera-
ture with knob C. If you try however, the
display shows the temperature set on
remote control.
