Parts overivew

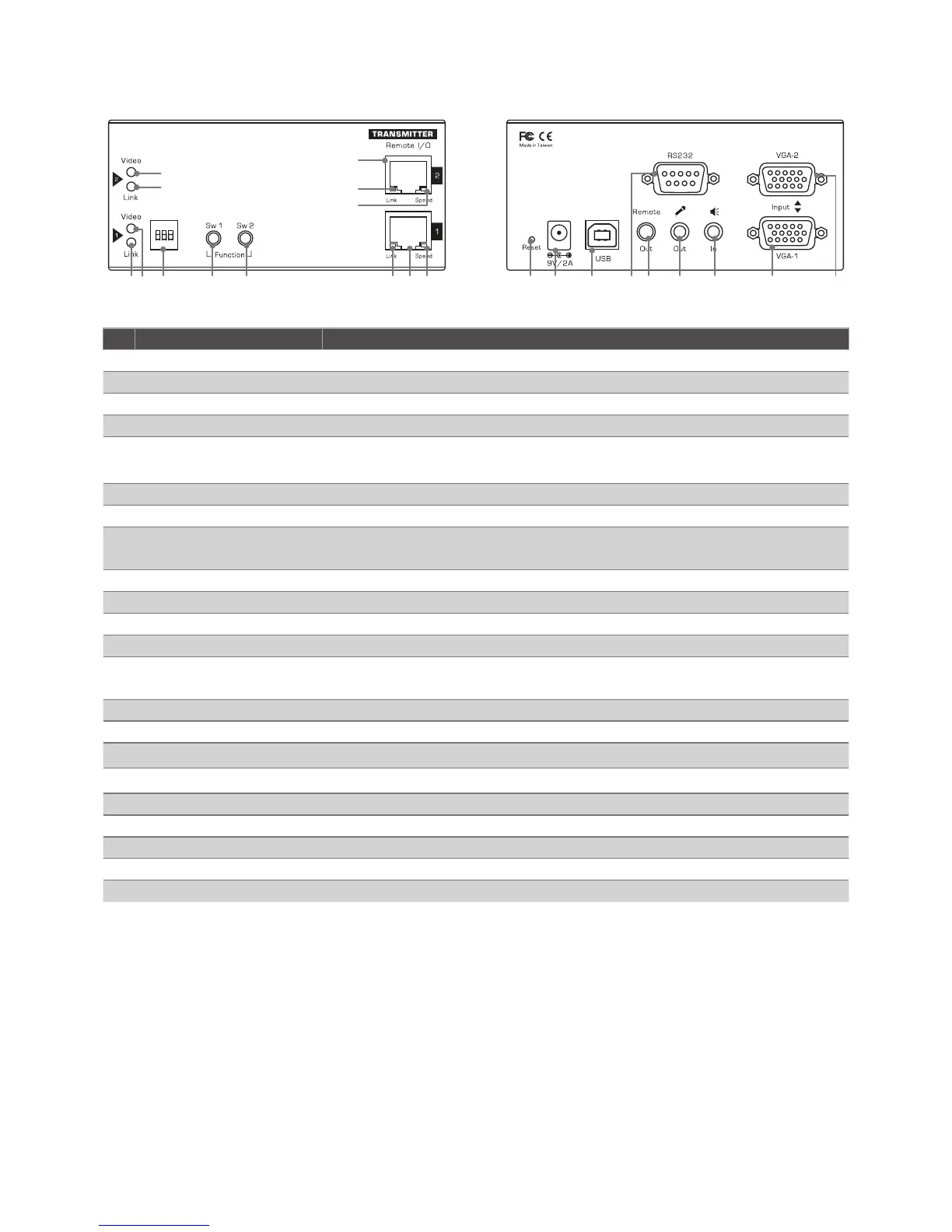

Transmitter
ON
1 2 3
1 2 3 4 5 6 7 8
9
10
11
12
13
14 15 16 17 18 19 20 21 22
No. Item Description
1 Link LED 1 Lights up when the link is active.
2 Video LED 1 Lights up when the power is on.
3 Three position dip switch Change the channel of Transmitter.
4 Momentary switch (Sw1) Short press to switch on or off the remote console.
5 Momentary switch (Sw2) • Short press to select Graphic mode / Video mode.
• Long press to select Anti-Dither 1/2/OFF.
6 LAN port 1 Link LED Blinks green when the connection is active.
7 LAN port 1 Connect to the LAN port of Receiver or a Gigabit Ethernet Switch.
8 LAN port 1 Speed LED Lights solid yellow when the connection speed is good, or blinks when
the connection speed may be slower.
9 Video LED 2 Lights up when the power is on.
10 Link LED 2 Lights up when the link is active.
11 LAN port 2 Connect to the LAN port of Receiver or a Gigabit Ethernet Switch.
12 LAN port 1 Link LED Blinks green when the connection is active.
13 LAN port 1 Speed LED Lights solid yellow when the connection speed is good, or blinks when
the connection speed may be slower.
14 Reset button Reset the unit.
15 Power jack Connect to a power adapter.
16 UBS port (Type B) Connect to USB port of PC.
17 RS-232 (Female) Connect to a RS-232 port of PC.
18 IR remote connector Connect to the IR emitter.
19 Mic. connector Connect to the Mic. input of PC.
20 Audio connector Connect to the audio output of PC.
21 VGA port 1 Connect to the VGA output 1 of PC.
22 VGA port 2 Connect to the VGA output 2 of PC.
