Thanks for purchasing KVM Matrix over IP Extender System. With our highly reliable and quality product,
you can enjoy countless benefits by using this device.
Introduction
KVM Matrix over IP Extender System is designed to extend computers to consoles by combing multiple
transmitters and receivers. Multiple users can fully access and control up to 8 PC with dual video output
or 16 PC with single video output anywhere based on your existing network infrastructure. The consoles
can be extended up to 100m away from your local computers using UTP Cat5 cables.
The console can be outputted not only single but also dual head display, and the resolution can be
supported up to 1920 x 1080@60Hz/Full HD over 100M of Cat 5 cable, while still keeping a satisfying
video quality at the same time. Meanwhile, the options of Graphic mode and Video mode are supported.
Graphic mode is optimized for still graphic displays; while video mode is best for a dynamically changing
video stream. You may select an appropriate mode depending on the connected displays.
Note: In case of to extend another 100M range, it needs to install the Gigabit Network Switch, other than
10/100Mbs Network Switch. Otherwise, the consequently will affect the data transmission. Therefore
should be avoided.

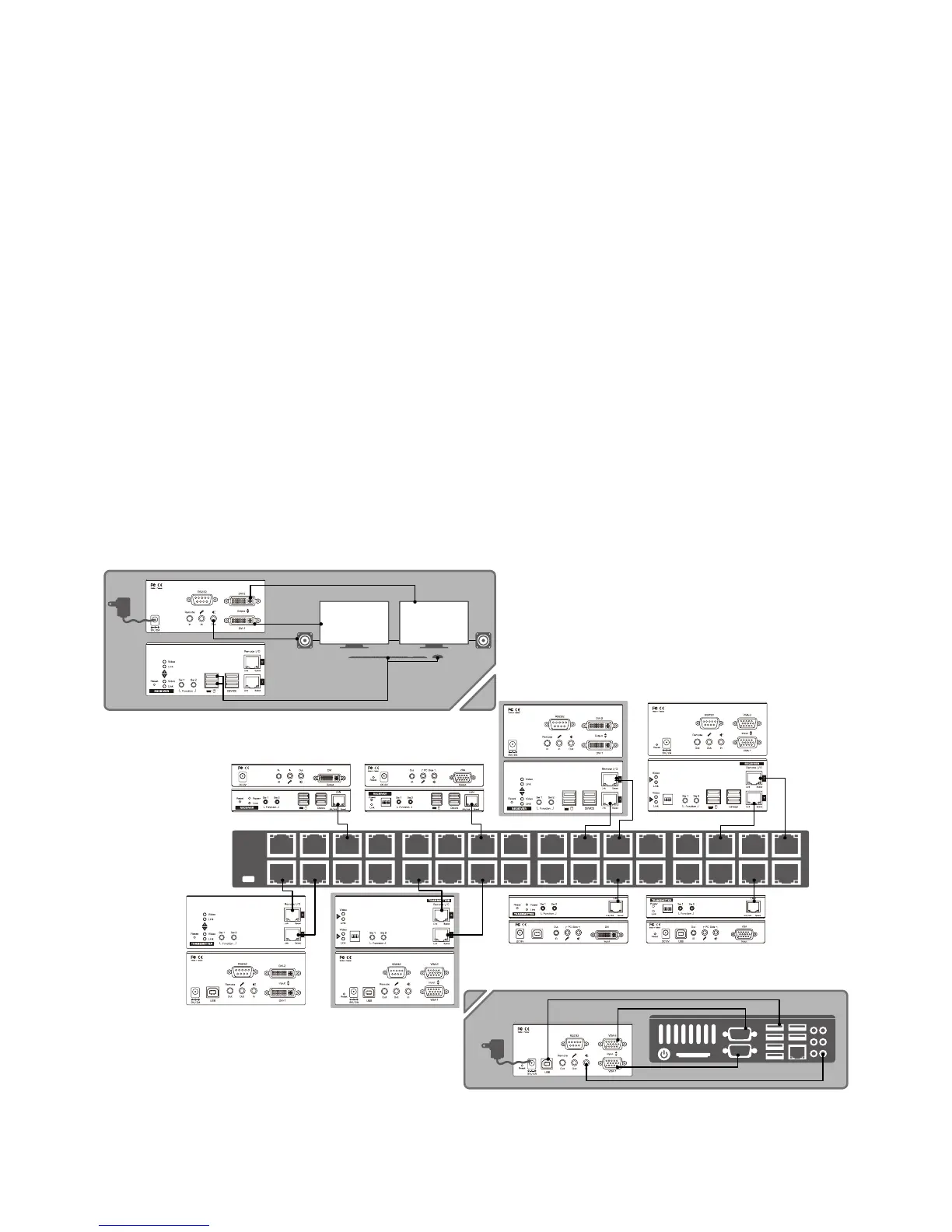

Connection diagram
The diagram illustrated here is an example of KVM Matrix over IP Extender System, the actual application
may vary. All illustrated computer, accessories and monitors are not included in the package, it is for
reference only. Make sure all the devices and peripherals are connected appropriately before using this
unit.
ON DIP
1 2 3 4
ON DIP
1 2 3 4
ON
1 2 3
ON
1 2 3
PC
DX-120TX
VX-120RXDX-120RX
DX-220RX VX-220RX
DX-220RX
Keyboard
& Mouse
Monitor
Speaker
DX-220TX
VX-120TX
VX-220TX
VX-220TX
Gigabit
Ethernet
Hub
