6

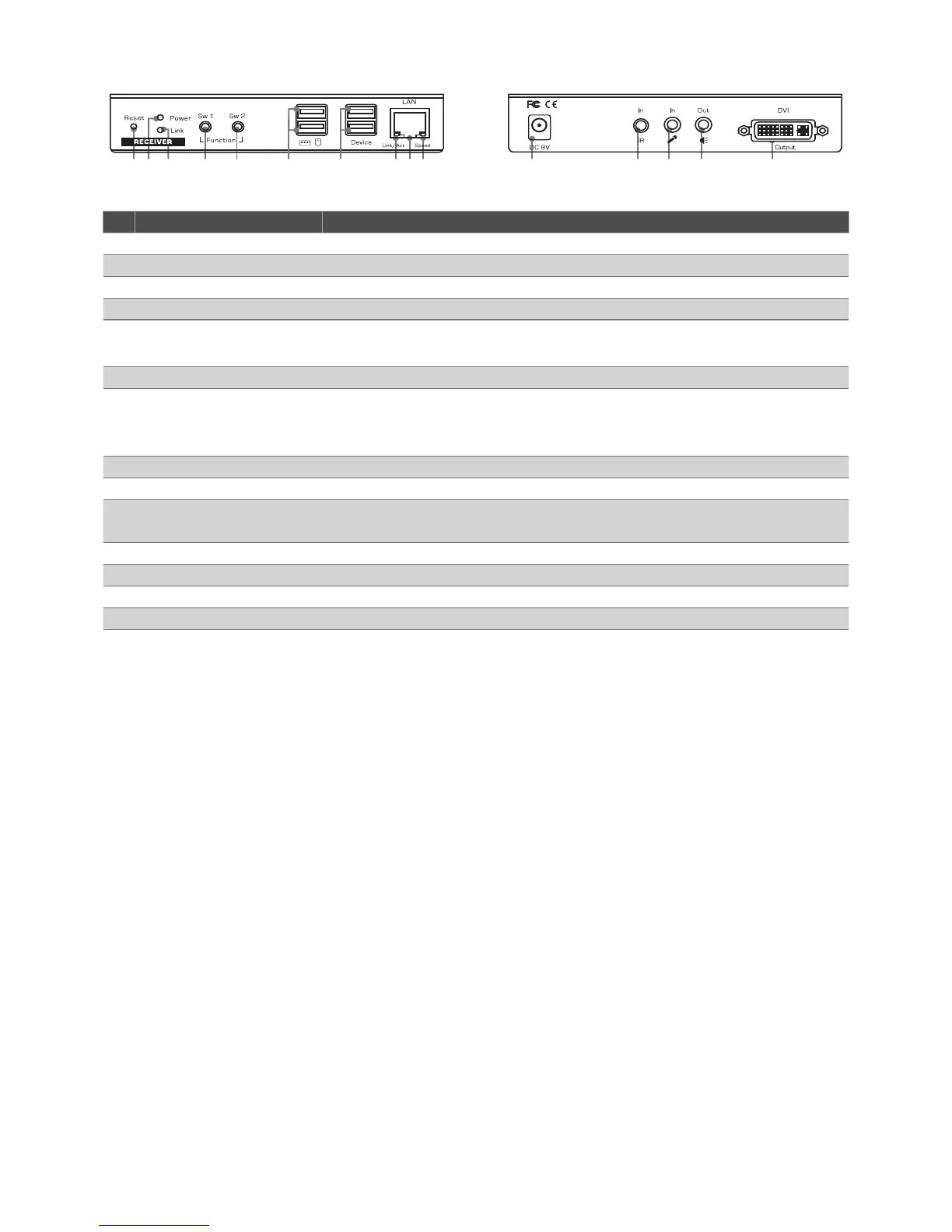

Receiver
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
No. Item Description
1 Reset button Reset the unit.
2 Power LED Lights up when the power is on.
3 Link LED Lights up when the link is active.
4 Momentary switch (Sw1) Short press to switch on or off the remote console.
5 Momentary switch (Sw2) • Short press to select Graphic mode / Video mode.
• Long press to select Anti-Dither 1/2/OFF.
6 USB port (Type A) Connect to keyboard and mouse.
7 USB port (Type A) Connect to other USB devices.
* Not all USB devices are compatible, some devices may not be
recognized.
8 LAN port Link LED Blinks green when the connection is active.
9 LAN port Connect to the LAN port of Transmitter or a Gigabit Ethernet Switch.
10 LAN port Speed LED Lights solid yellow when the connection speed is good, or blinks when
the connection speed may be slower.
11 Power jack Connect to a power adapter.
12 IR remote connector Connect to the IR receiver.
13 Mic. connector Connect to a microphone.
14 Audio connector Connect to a speaker.
15 DVI port Connect to a DVI monitor.
