UM960 User Manual
UC-00-M34 EN R1.0 Introduction 1
1 Introduction
UM960 is a new generation of GNSS high precision positioning RTK module from
Unicore. It supports all constellations and multiple frequencies, and can simultaneously
track BDS B1I/B2I/B3I + GPS L1/L2/L5 + GLONASS L1/L2+Galileo E1/E5a/E5b + QZSS
L1/L2/L5 + SBAS. The module is mainly used in UAVs, lawn mower, handheld device,
high precision GIS, precise agriculture, and intelligent drive.
UM960 is based on NebulasⅣ
TM
, a GNSS SoC which integrates RF-baseband and high
precision algorithm. Besides, the SoC integrates a 2 GHz dual CPU, a high speed floating
point processor and an RTK co-processor with 22 nm low power design, and it supports
1408 super channels and realizes 20 Hz RTK positioning output. All these above enable
stronger signal processing.
UM960 features a compact size of 16.0 mm × 12.2 mm. It adopts SMT pads, supports
standard pick-and-place and fully automated integration of reflow soldering.
Furthermore, UM960 supports interfaces such as UART, I
2
C
, which meets the
customers’ needs in different applications.

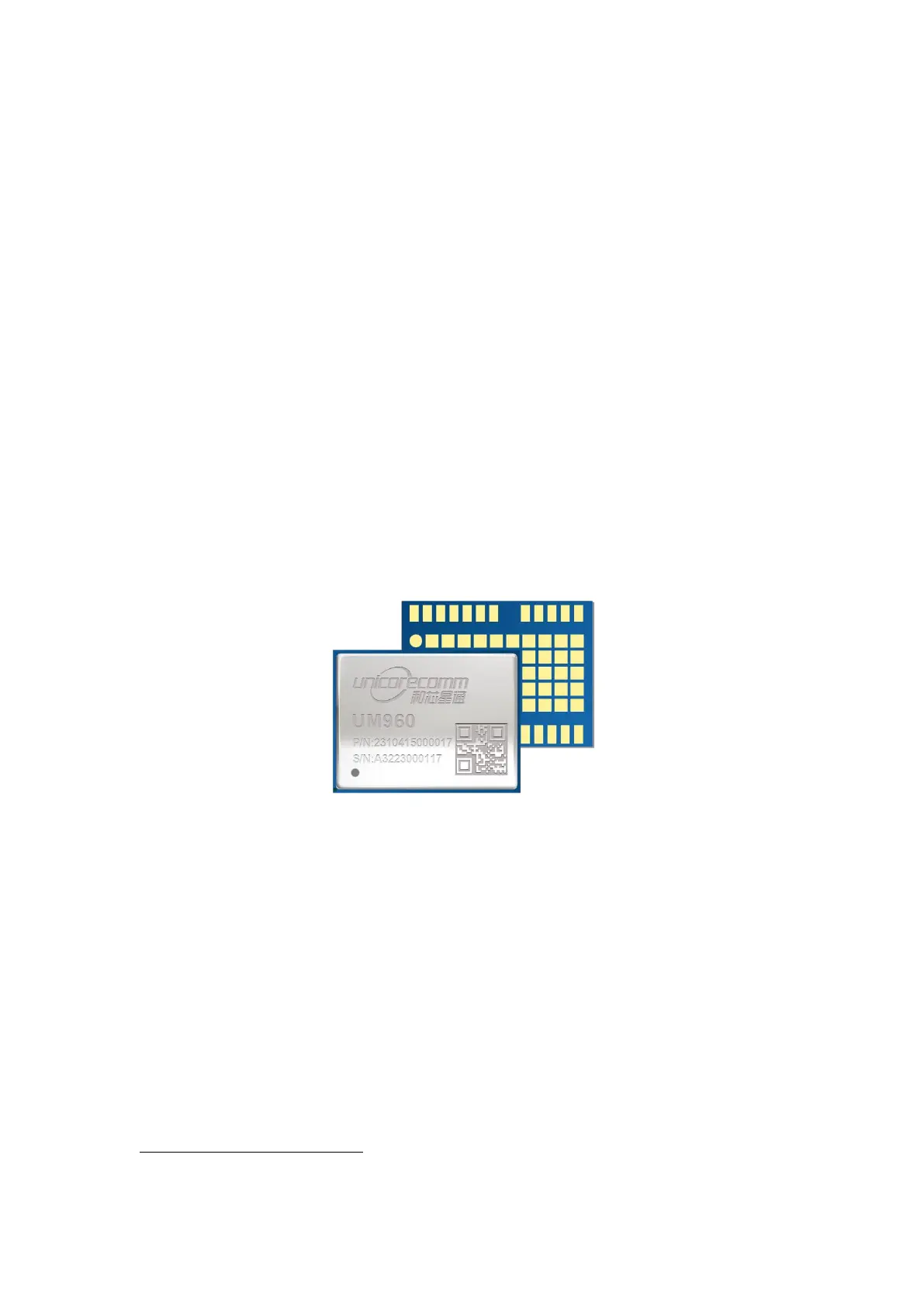

Figure 1-1 UM960 Module
