4 Production Requirement
Recommended soldering temperature curve is as follows:

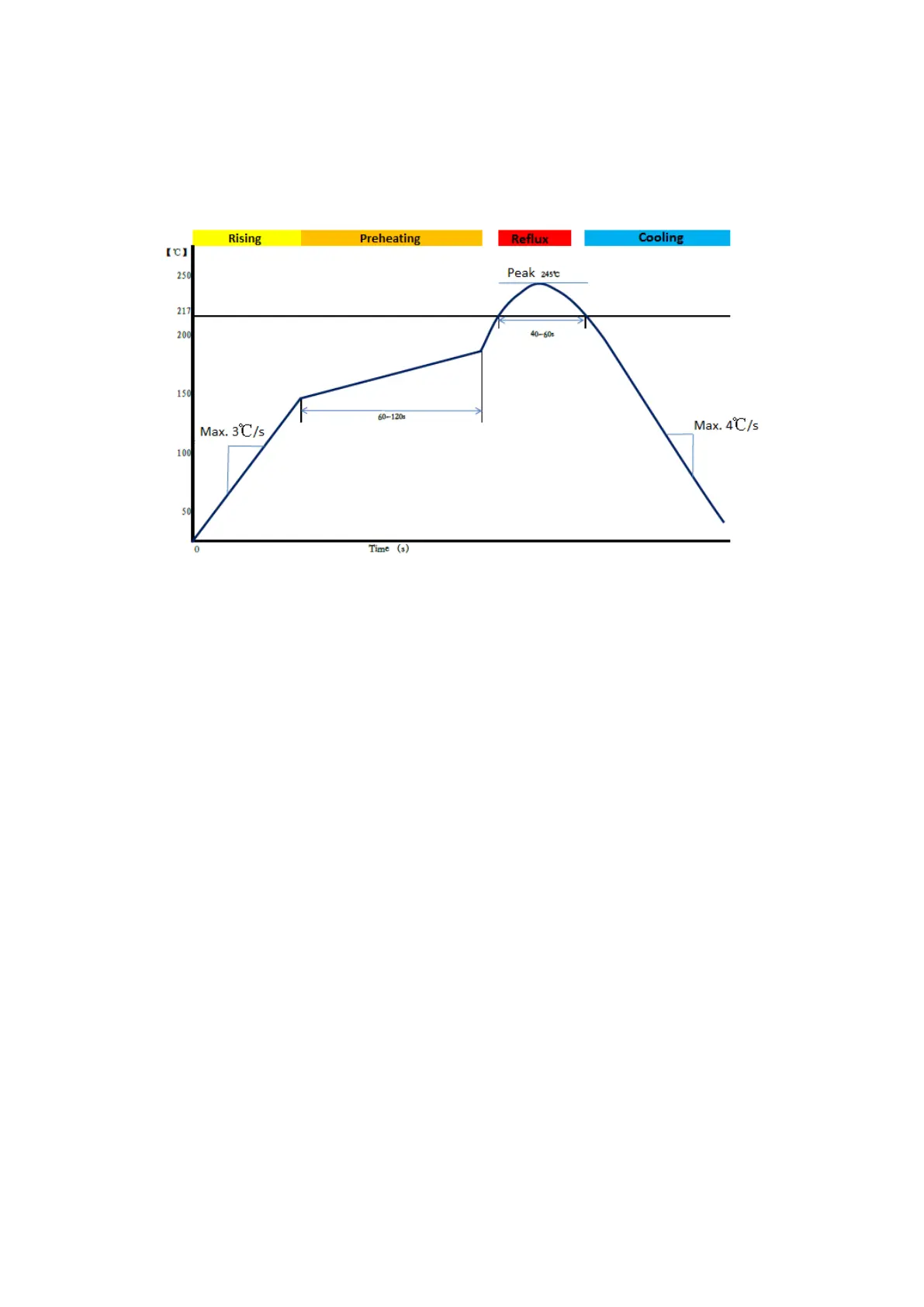

Figure 4-1 Soldering Temperature (Lead-free)
Temperature Rising Stage
 Rising slope: Max. 3 °C/s
 Rising temperature range: 50 °C ~ 150 °C
Preheating Stage
 Preheating time: 60s ~ 120 s
 Preheating temperature range: 150 °C ~ 180 °C
Reflux Stage
 Over melting temperature (217 °C) time: 40s ~ 60 s
 Peak temperature for soldering: no higher than 245 °C
Cooling Stage
 Cooling slope: Max. 4 °C / s
