UM982-EB User Manual
16 Appendix UC-08-M31 EN P1.0.3
Debug1
Debug2
Debug3
Debug4
J2
NC
J1
NC

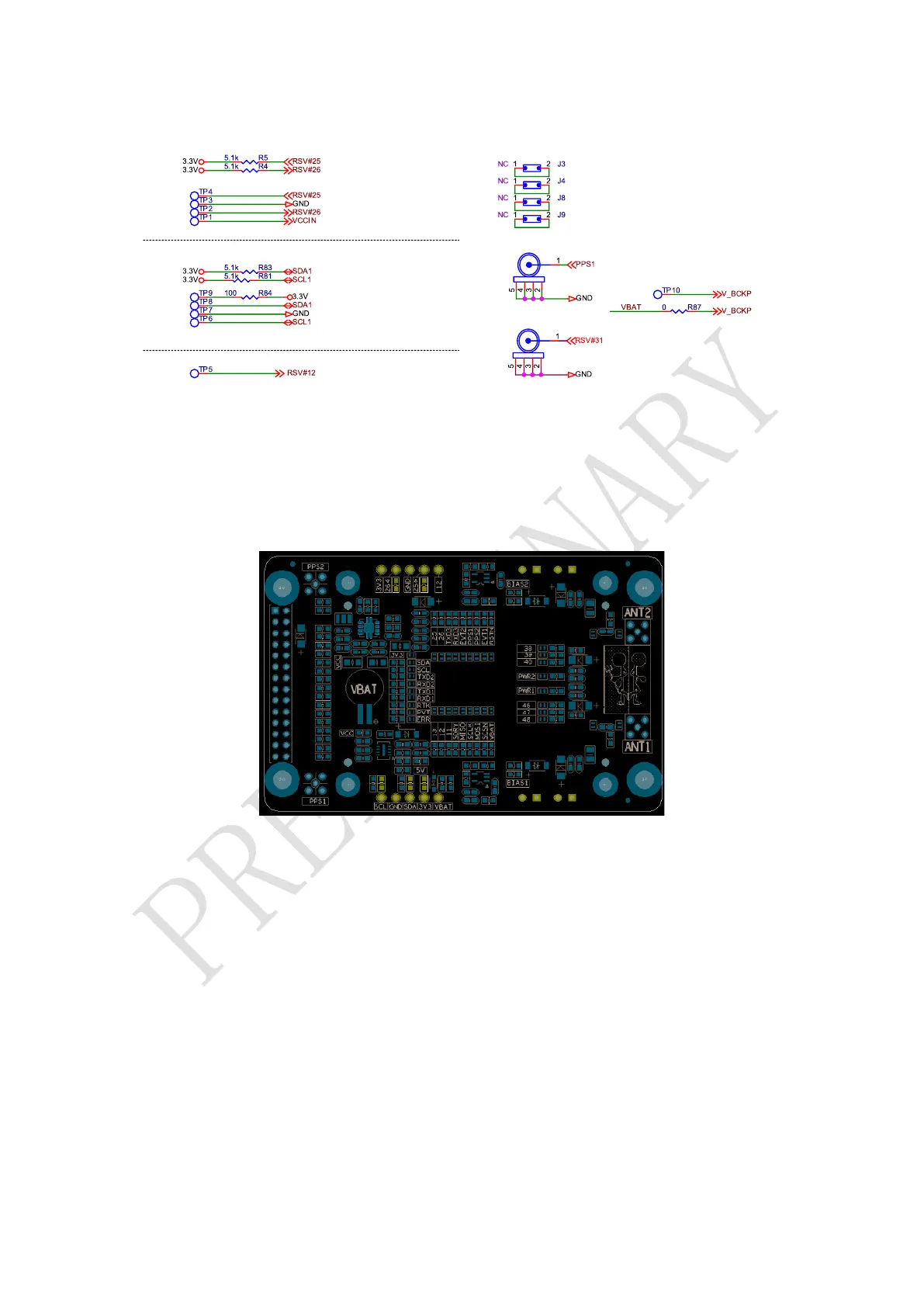

Figure 7-1 Debug Ports for the UM982 Module
The silkscreen markings on the right of the test points are arranged in order to identify
the function of each port.
Figure 7-2 Through-Hole Test Points on UM982-EB
Appendix
Schematic of UM982-EB
