Chapter 2 Installation and Wiring
12
2.3.2 Signal Cable Connection

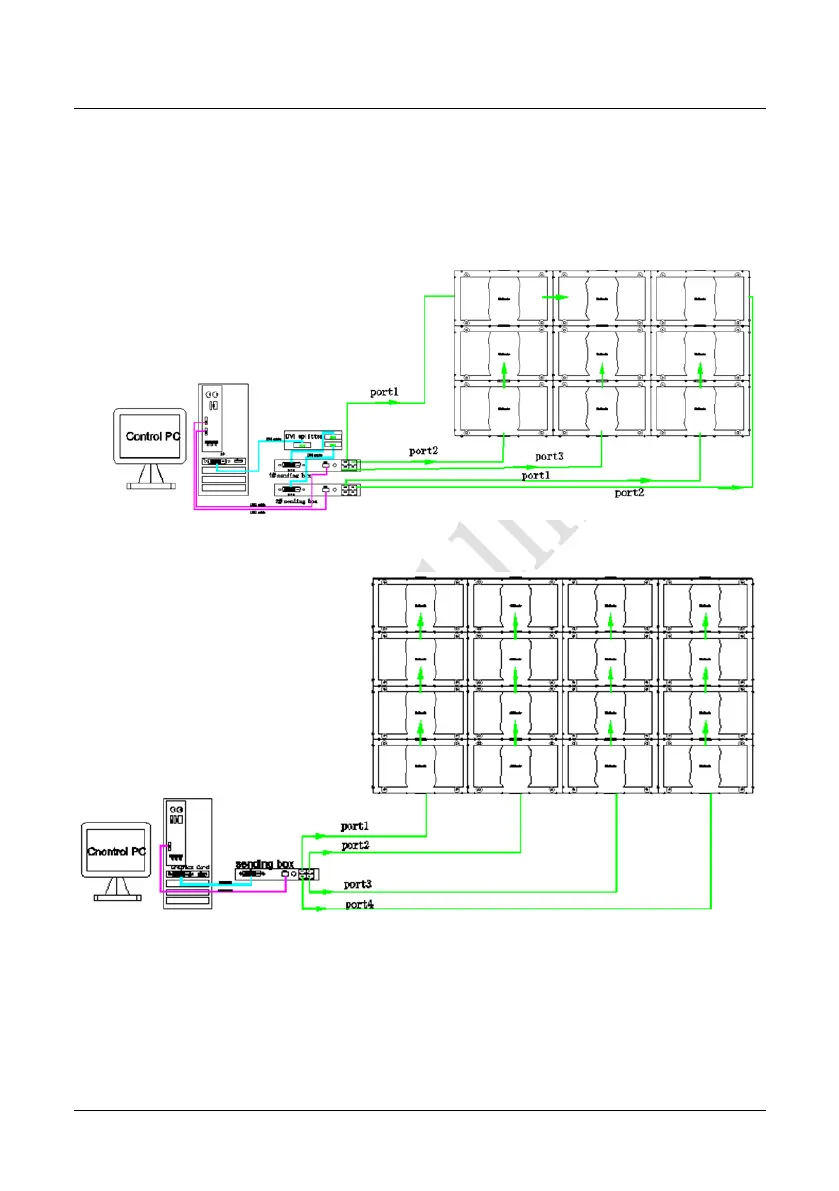

Figure 2-13 ~ Figure 2-16 shows the signal cable connection for display with a
resolution of 1920 x 1090. Signal cables shall be connected based on the wiring
diagram of the delivered products for the project.
Figure 2-13 Signal Cable Connection Diagram of Upanels 0.9
Figure 2-14 Signal Cable Connection Diagram of Upanels 1.2
