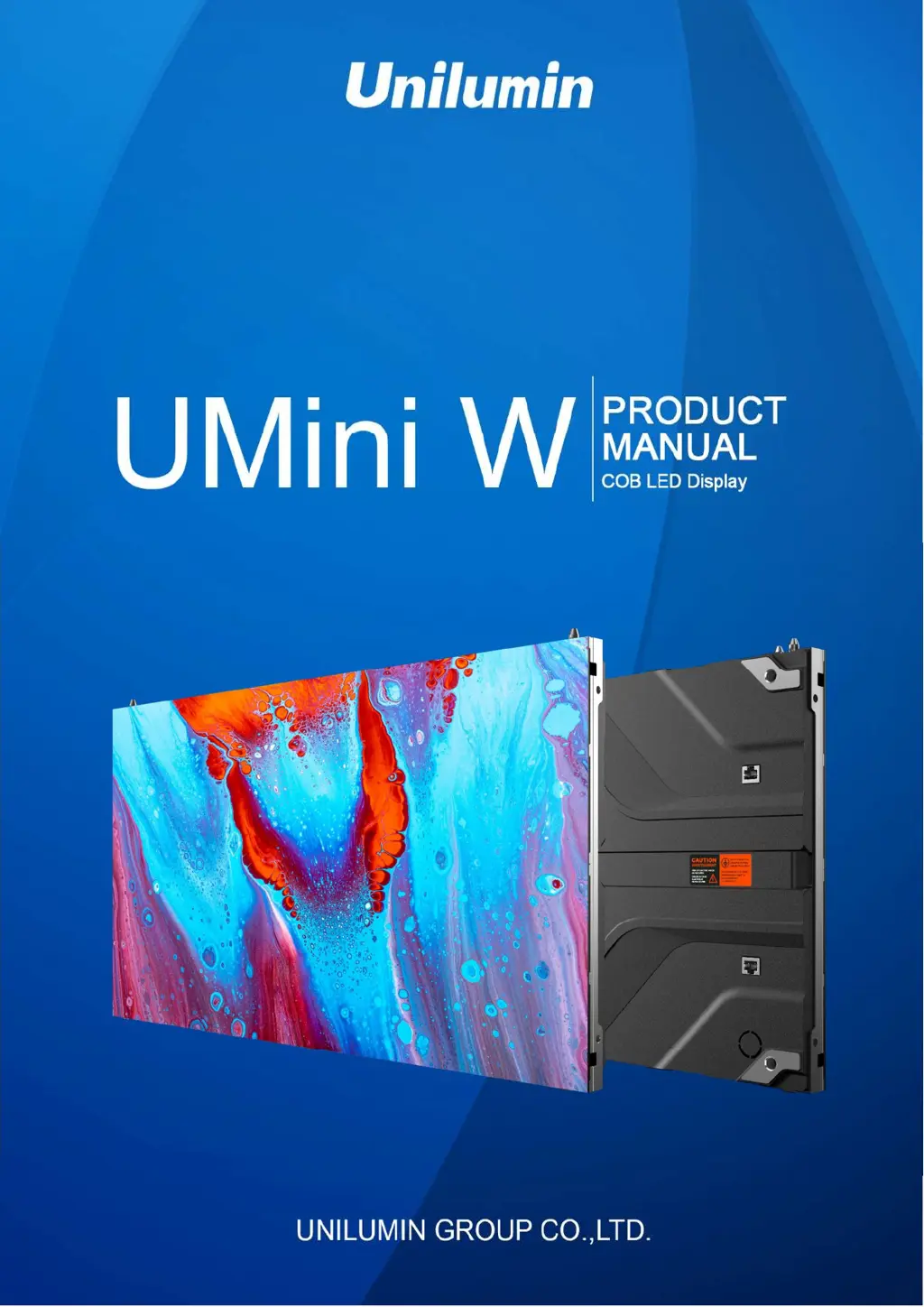

Unilumin UMini W User Manual (English)

Questions and Answers:

R
Ronald MoranAug 5, 2025
Why is my Unilumin UMini W Monitor screen blinking?
- R
  Ruth SotoAug 6, 2025
  Screen blinking on your Unilumin Monitor can occur due to several reasons. First, check the DVI cable and signal cable connections to ensure they are secure. Also, ensure that the length of the signal cables does not exceed the recommended maximum transmission distance: 10 m for DVI cable, 100 m for signal cable, 300 m for multi-mode optical fiber, and 15 km for single-mode optical fiber. Another potential cause is an incorrect output resolution setting on the playing device or sending box. Make sure the resolution of the playing device and the sending box is greater than or equal to the screen's resolution.
H
Henry PerkinsAug 10, 2025
What to do if Unilumin UMini W display fails to light up?
- H
  Hannah BrooksAug 10, 2025
  If your Unilumin Monitor display fails to light up, there are a few things you can check. First, ensure that the display and control devices are receiving power by checking the AC power input. Next, verify that the LED display is receiving input signals by checking the cables between the sending box and the receiving card, and also the DVI cable between the control PC and the sending box. Finally, confirm that the control PC is not in sleep mode or monitor protection mode. If it's not in sleep mode, check the graphics card configuration in the software.
D
Darrell EvansAug 15, 2025
How to fix an incomplete picture on a Unilumin UMini W Monitor?
- J
  Jeremy FisherAug 15, 2025
  If you're seeing an incomplete picture or the picture is incorrectly positioned on your Unilumin Monitor, it could be due to a few reasons. First, check that the connecting file for the screen is correct and matches the display's signal cable connection method. Also, ensure that the receiving card signal cables between cabinets are properly connected. If a receiving card is faulty, consider replacing it. Lastly, verify that the Displaying Position and Screen Size settings in the software match the actual screen size.
T
Tammy CortezAug 21, 2025
What causes a cabinet to blink on a Unilumin UMini W display and how to fix it?
- V
  Victoria PageAug 21, 2025
  If a cabinet is blinking on your Unilumin Monitor display, it could be due to a faulty output from the receiving card or hub card. Check whether the receiving card signal cable and hub card in the cabinet are connected correctly. Another potential cause is an incorrect receiving card program. Check the receiving card program for the cabinet or check the receiving card.
K
Krystal SmithAug 26, 2025
Why is a cabinet failing to light up on my Unilumin UMini W Monitor?
- M
  Michael HardyAug 26, 2025
  If a cabinet in your Unilumin Monitor is failing to light up, it could be due to a few reasons. First, check the voltage at the DC side of the power supply and the receiving card power supply. Also, check the receiving card signal indicator light in the cabinet and ensure the hub card contacts properly with the receiving card. Another possible cause is a faulty signal output from the previous cabinet. Check the output signals of the receiving card of the previous cabinet, or try replacing the signal cable.
V
Vanessa PowersAug 31, 2025
How to troubleshoot a Unilumin UMini W Monitor when modules in the cabinet fail to light up?
- L
  Laura MckayAug 31, 2025
  If some modules in the cabinet of your Unilumin Monitor are failing to light up, this could be due to a faulty power supply output for the modules. Check the DC voltage for the modules. Alternatively, it could be due to a faulty signal output that controls the related modules. Check the hub card ports or flat cables that control the modules.
