Chapter 7 Packaging Transportation and Storage
7.1 Packaging
The UMini W series products would be packed in carton, and the carton is vacuum-packed in an anti-static bag, and
finally packed in heavy-duty carton, as shown below:

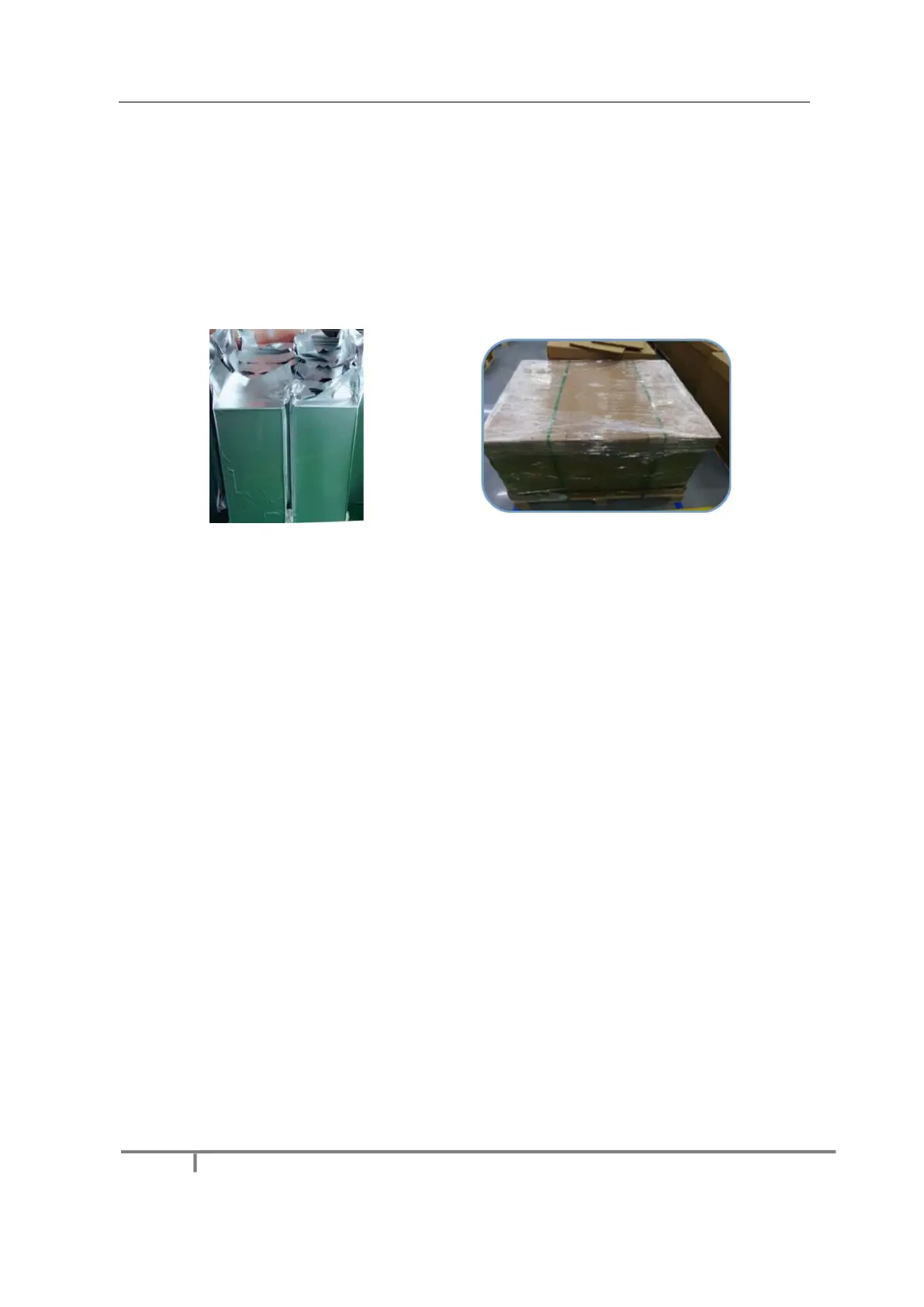

Figure 7-1 Package in Carton Figure 7-2 Package in Heavy-Duty Carton
7.2 Transportation
The cabinets must be packaged before transportation. The product shall not be placed upside down or
horizontally, and must be protected against the wind, rain, direct sunlight, and corrosive liquid during transportation.
The stacking layers shall not exceed three layers for plywood cases.
7.3 Storage
The cabinets shall be stored in an environment with an ambient temperature ranging from -20°C to +55°C and a
relative humidity ranging from 10% to 85% RH. Do not store the cabinets in an environment with volatile, corrosive,
or flammable chemical products.
