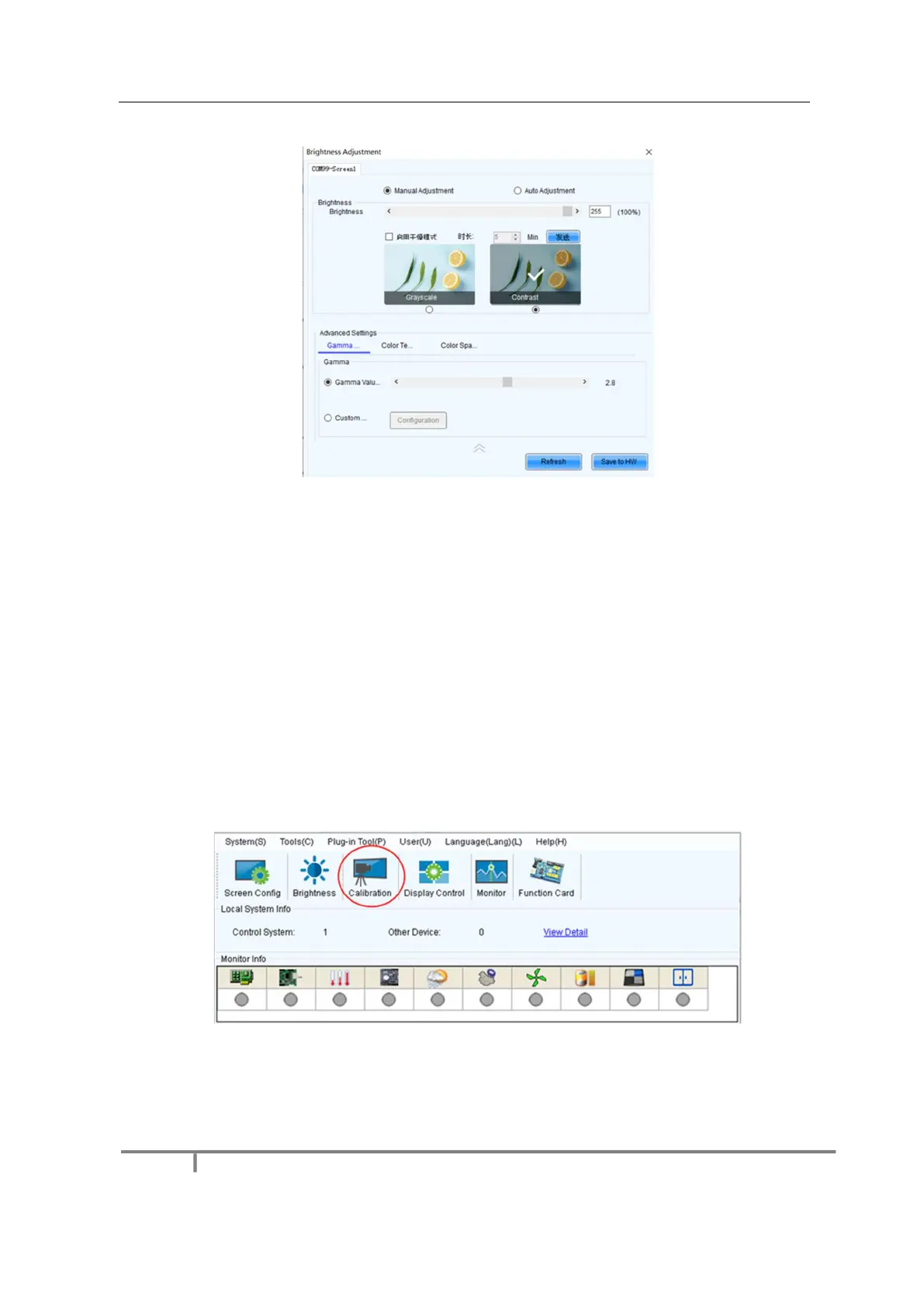

Fig 3-12 Manual Adjustment
Display Quality: Includes Soft mode and Enhanced mode. The Soft mode is generally used for indoor LED
displays while the Enhanced mode is used for outdoor LED displays.
Gamma Adjustment: Includes Mode A and Mode B. The LED display in Mode A can light up earlier than that in
Mode B.
Gain: For chips with current gain function, adjusting the current gain can improve the chip’s current output.
RGB brightness: Adjusts the brightness of Red (R), Green (G) or Blue (B) separately.
2.Automatic Adjustment
Schedule, Auto, and Auto Adjustment by Hardware are automatic adjustment modes. Automatic adjustment
function is not recommended for indoor LED display products because the indoor environment has stable ambient
light and is rarely affected by the ambient brightness. If you really need to use this function, you can configure this
function by using the wizard.
3.5 Correction Coefficient Management
Fig 3-13 Main Window for Advanced User
