2.2.1 Installation of Fixed LED Display-Front Installation (Standard)
1) Check whether the bottom beam is level. Make sure that its levelness is within ±1mm.
（bottom beam is a must have）
2) Install the cabinets sequentially from bottom to top and from middle to both sides. In addition,
in front of the screen, fix the front connecting plates and cabinets with installation screws to the
square tubes.
3) Keep proper joints and flatness between the cabinets during cabinet installation.
4) After the installation of the cabinet is completed, connect the power cable and the signal cable
between the cabinets.
5) Install the module on the corresponding cabinets. During the module installation keep flatness
among the modules during modules installation.
6) The installation of the screen is completed.

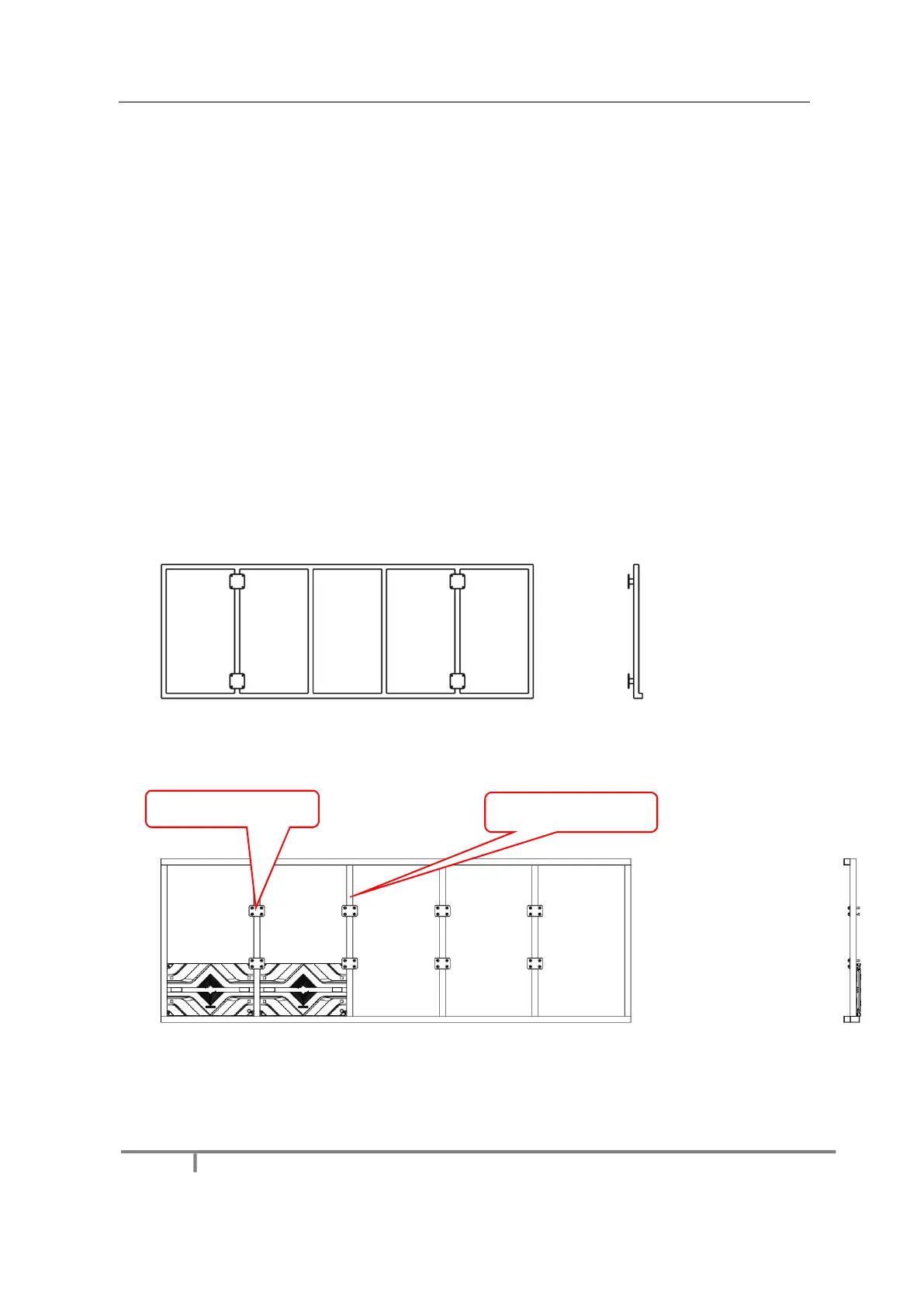

Fig 2-2 Profile Installation
Fig 2-3 Cabinet Fastening
Front Mounting plate
Square tube：40*40mm
