2) Click Send to HW.
3) After sending, confirm that the screen is complete. Then click Save.

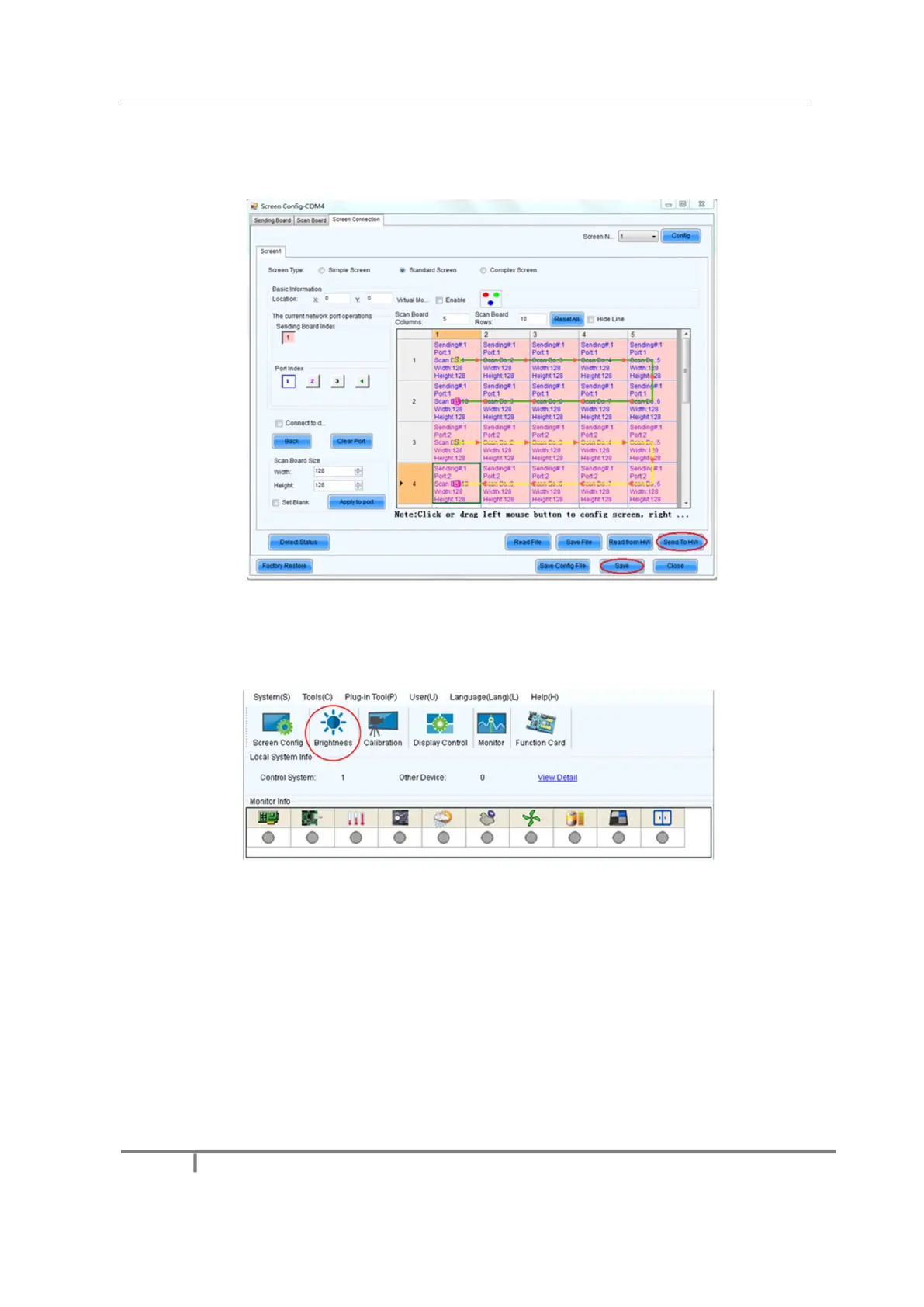

Fig 3-10 Screen Connection with Loaded File
3.4 Brightness Adjustment
On the main window, click Brightness, as shown in Figure 3-11, to display the brightness adjustment interface:
Fig 3-11 Main Window for Advanced User
There are four brightness adjustment modes, namely Manual, Schedule, Auto, and Auto Adjustment by
Hardware. After adjustment is finished, click Save to HW to save the adjustment results to the hardware.
1.Manual Adjustment
Select Manual and adjust the brightness by dragging the scroll bar below Brightness Adjustment or directly
modifying the brightness value (the maximum value is 255) next to the scroll bar.
