57

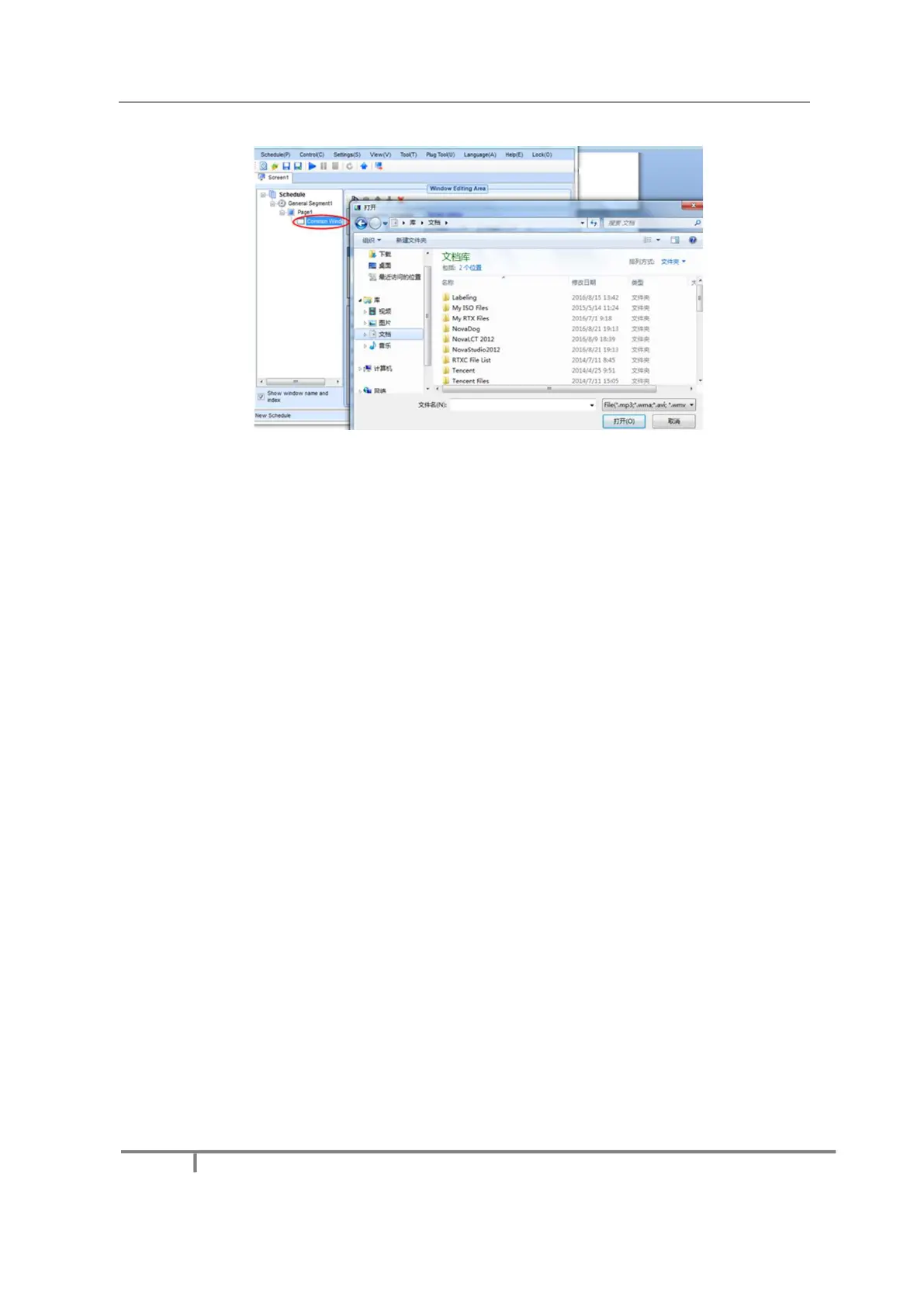

Fig 4-28 Opening a Playing
Solution File
Chapter 5 Startup, Shutdow
n, and Maintenance
5.1 Startup Sequence
1)
Start the distribution
box
for the LED dis
play
.
2)
Start the control c
omputer
.
3)
Start the video processo
r
.
57
59
