Unilumin UMini W User Manual

34

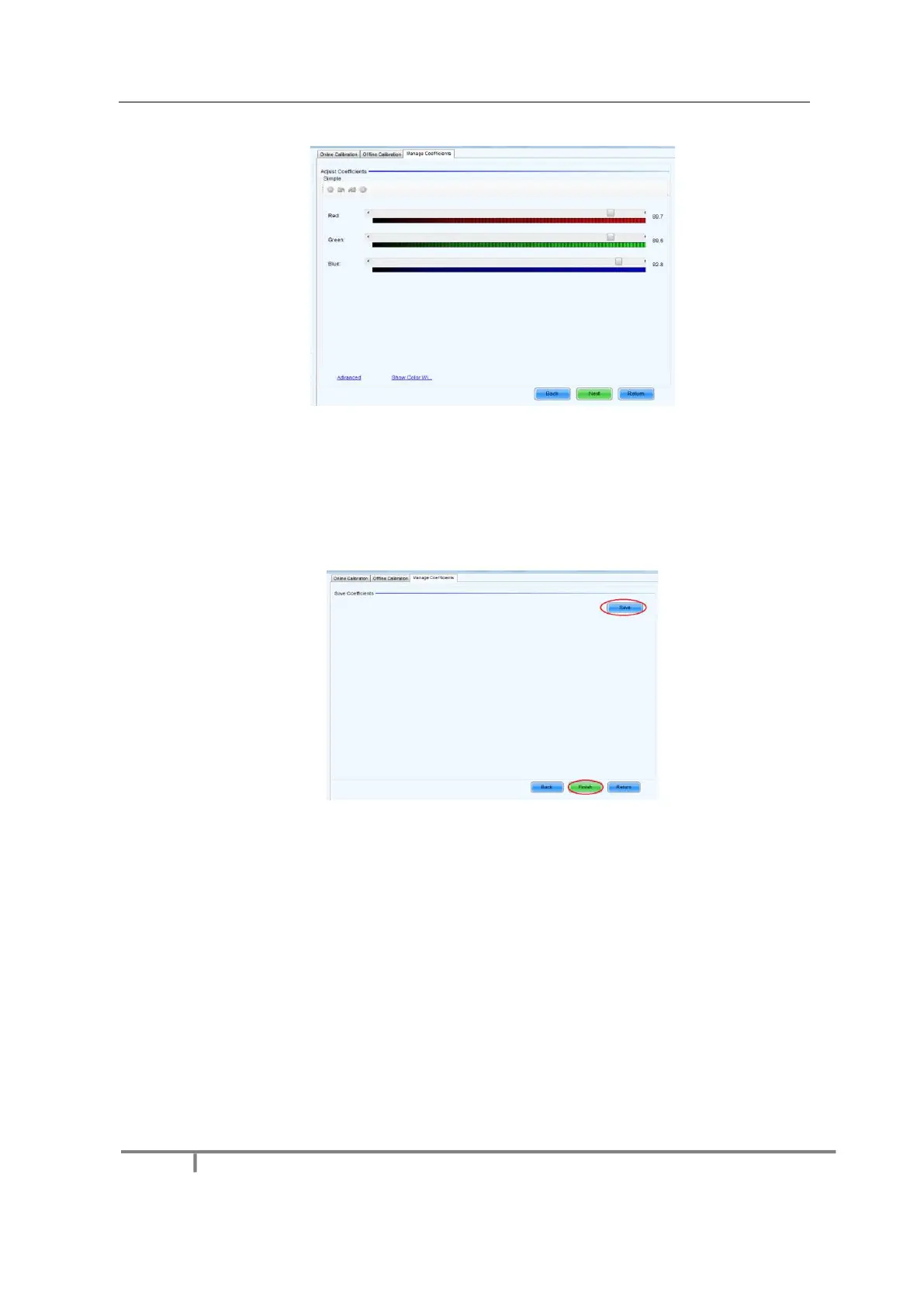

Fig 3-19 Simple Adjustment
Red：Adjust the red brightness value of calibration coefficients.
Green：Adjust the green brightness value of calibration coefficients.
Blue：Adjust the blue brightness value of calibration coefficients.
5) Save Coefficients: Click Save to save the correction coefficients to the hardware. The saved coefficients are
retentive even after a power failure. Then click Finish.
Fig 3-20 Saving Correction Coefficients
3.5.2 Setting Coefficients for a New Module
1) Select Position of the New Module: Select Topology or List. Then select the position of the receiving card
