Unilumin UMini W User Manual

35
where the new module is located. Double click the selected position:

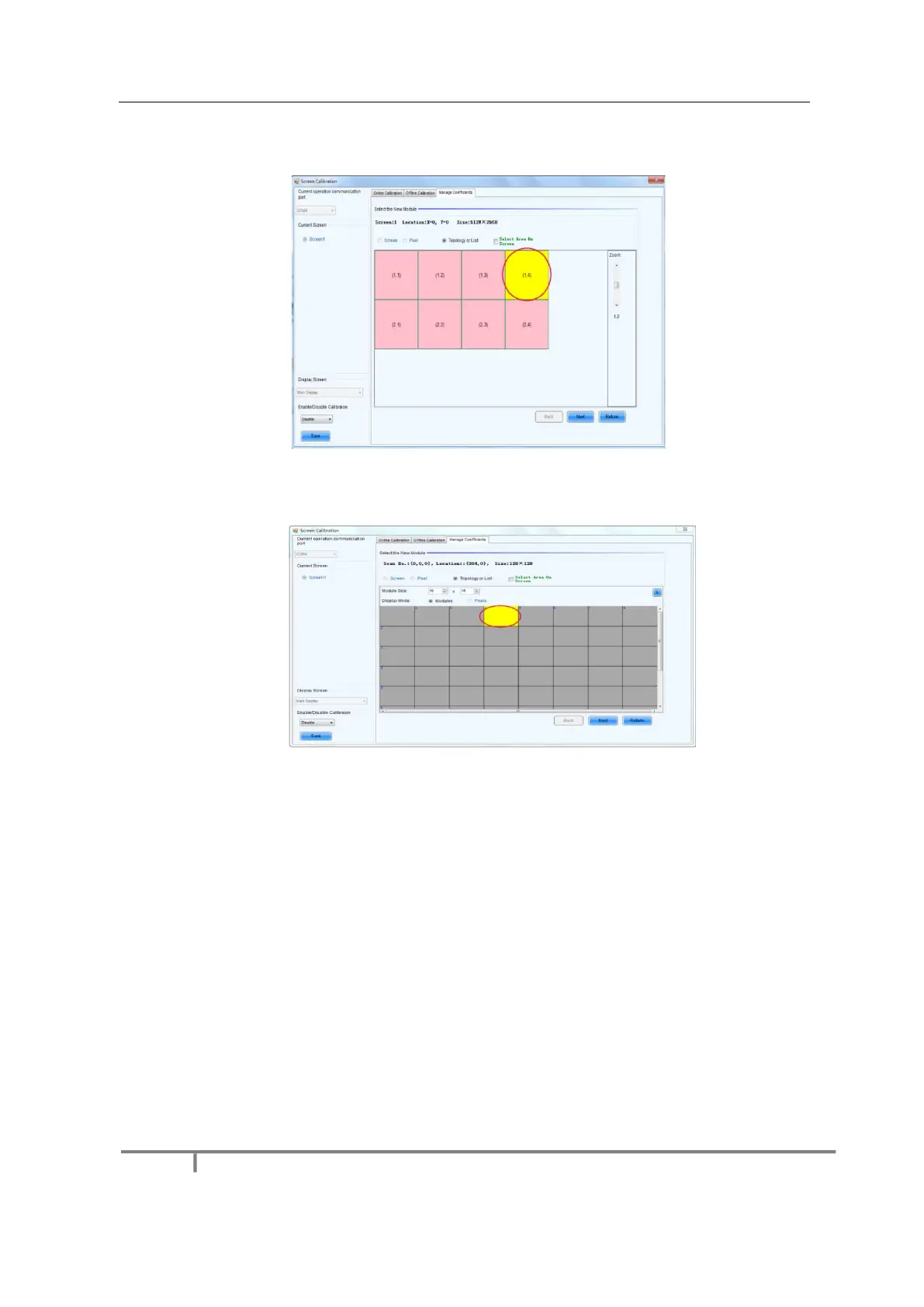

Fig 3-21 Selecting Cabinet for the New Module
2） Choose Display Mode to Modules. Select the position of the new module and click Next.
Fig 3-22 Selecting Position of New Module
Module Size：Set the size of the module in a cabinet. The software determines each module arrangement based
on module size and cabinet size.
3） Adjust the coefficients (similar to the steps of coefficient adjustment in setting coefficients for a new scan board).
For details, refer to Step 2 and Step 3 in Section 3.5.1).
4） Save the correction coefficients to the hardware (Use similar steps in setting coefficients for a new receiving
card. For details, refer to Step 4, Step 5, and Step 6 in Section 3.5.1) so that they are retentive after a power failure.
