2.2.3 Concave Installation (2°~3°)
1) Make sure that the bottom beam is horizontal, and the levelness value is within ± 1mm;
2) Assemble the specific trimming cabinet from the bottom to the top and from the middle to both sides
successively. Fix the angle block to right side of the the cabinet by using screw KM2*6; (bottom beam is a
must have)
3) The left and right cabinets are fixed with left and right shoulder screw, and the mounting plate and cabinets
are fixed on the square pipe with hexagon socket bolts.
4) After the first line of cabinet is installed, the second line of cabinet is installed, and the upper and lower
cabinets are fixed with upper and lower shoulder screw.
5) In the process of cabinet installation, it is necessary to pay attention to the gap and flatness between
cabinets.

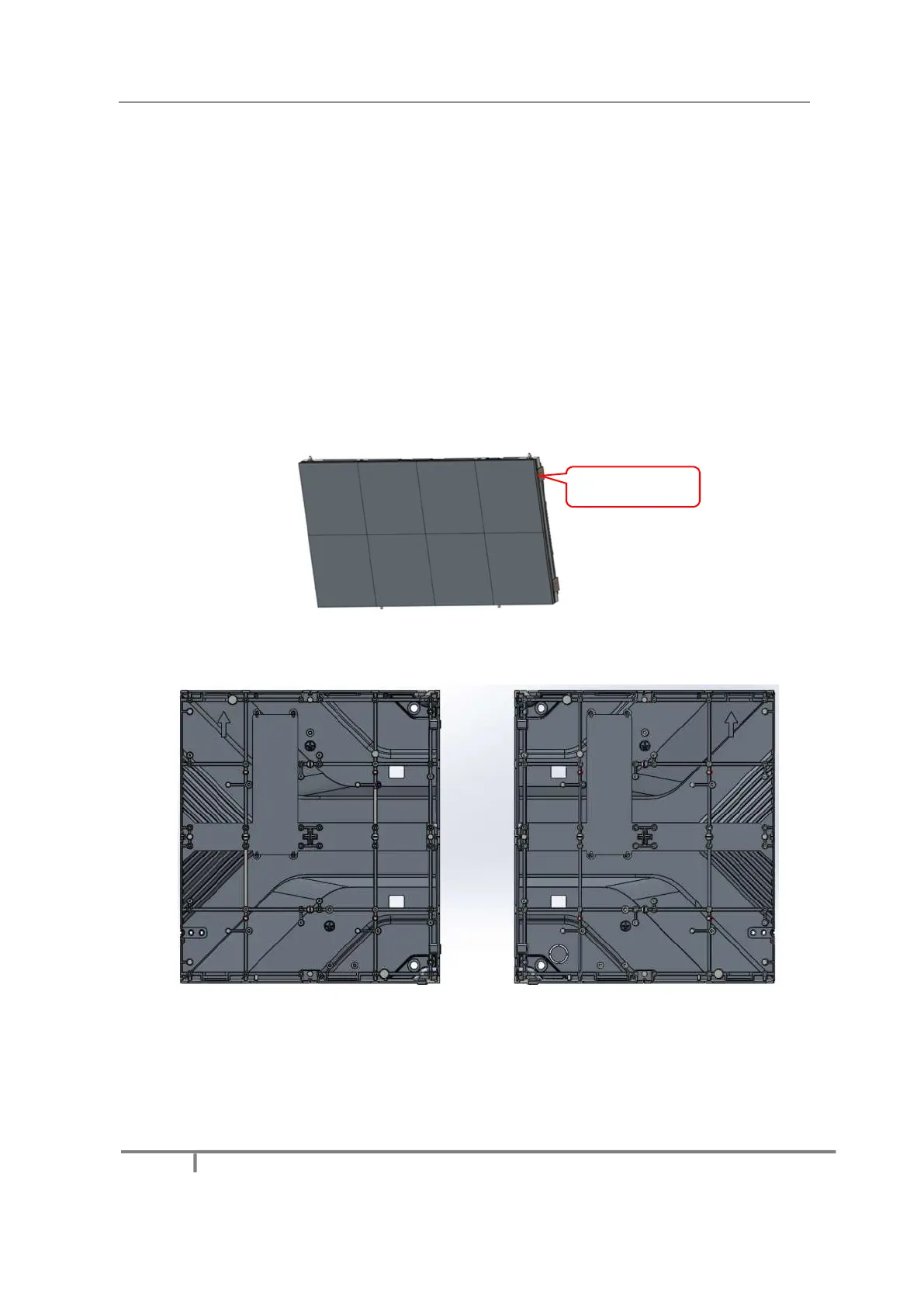

Fig 2-17 Locking of left and right cabinets completed
Fig 2-18 install angle block 2
KM2*6 screw
