Operation Sageon Micro Power Module Manual
PM990-4207-00, Rev 6
5-2
5.1.2 Front Panel Pushbuttons

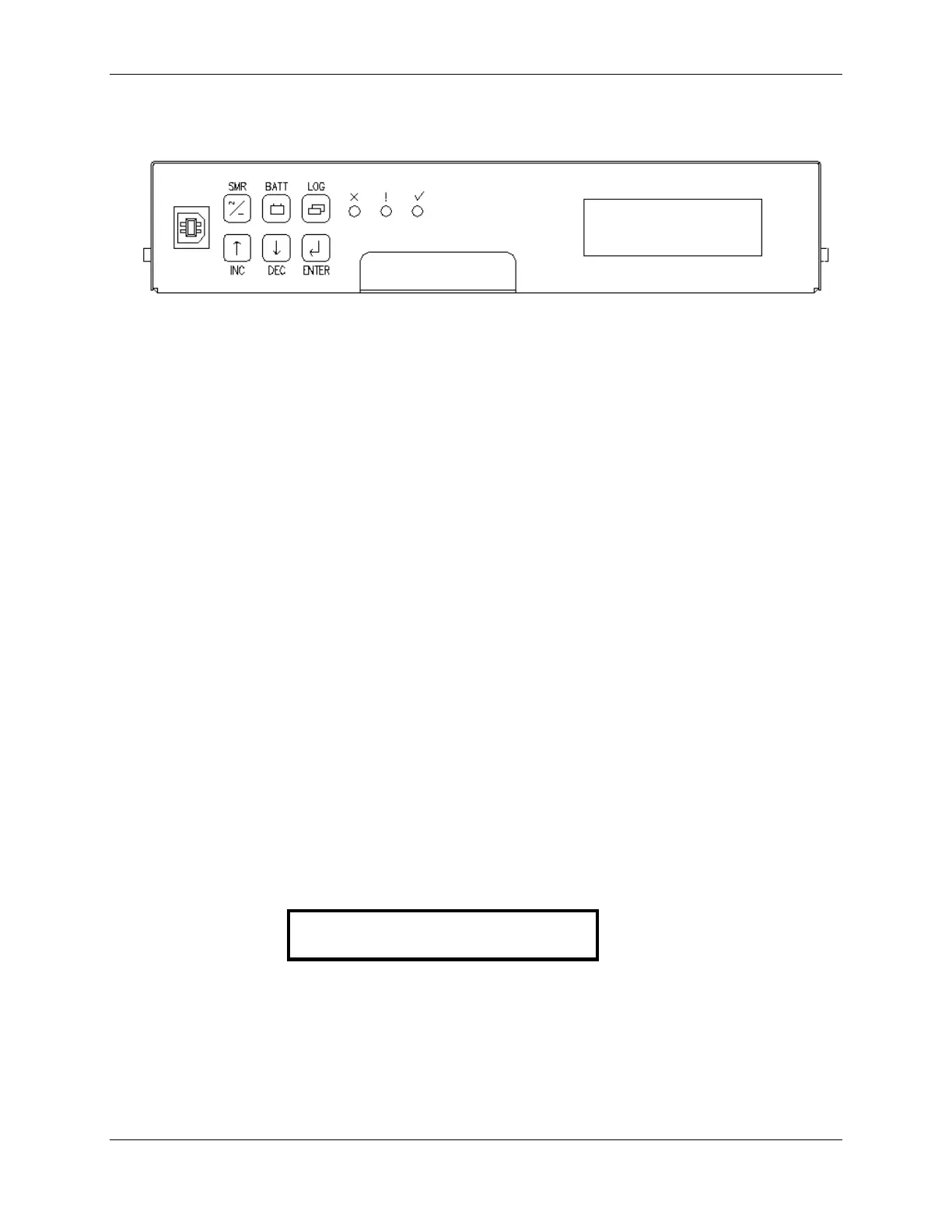

There are six pushbuttons associated with the LED screen for the purpose of entering different Menus and for
scrolling through the menus. The layout of the pushbuttons is shown below:
Apart from the base menu (system parameters), there are three other menus which can be accessed by momentarily
pressing the relevant pushbuttons:
a) RECTIFIER menu, which includes the rectifier related programmed parameters as well as the output
current and heat-sink temperature for each rectifier;
b) Battery menu in which all the parameters relating to the batteries are found;
c) Log which stores the individual alarm event information together with date and time starting with the
most recent alarm. A total of 100 alarms are stored.
5.1.3 Status Indicating LEDs (Controller)
SYSTEM OK
Green LED
ALARM
!
Amber LED
RECTIFIER SHUTDOWN
Red LED
All LEDs off, indicates the unit is off due to either DC power not present, or there is an internal failure of Controller
The amber LED indicates any alarm condition, either system or rectifier related.
The red LED indicates that one or more of the rectifiers in the system is shut down.
5.2 CONTROLLER SECURITY & ALARMS
5.2.1 Password security
Controller features password security for setting of parameter. A valid password is an alphanumerical code having
minimum three and maximum eight characters.
Units leave the factory without a pre-programmed password and the security function is not active. To activate the
security, a password must be programmed. Once that is done, security can be enabled.
5.2.1.1 Entering a password to gain access to parameters change
When the security function is active any changes to the system settings can be done only after a valid password was
entered. When the ENTER key is pressed to change a parameter, the display will show a message “Enter Password”
on the top line and a blinking cursor on the right hand side of the bottom line. Using INC and DEC keys scroll to the
first character of the password and press ENTER. The character will be substituted by an asterisk (*) displayed to
the left of the cursor. Enter all characters of the password the same way. If the password is less than eight characters
long press ENTER again after last character. If the entered password was correct the display will return to the
selected parameter ready for modification. If the entry was incorrect following will be displayed.
Wrong Password
Panel Locked
There is no limit on password entry re-tries. To abort password entry any of the top row buttons should be pressed.
The display will return to the selected parameter. Once unlocked, the security is disabled until there is no keypad
activity for >1 minute.
