13
Figure 13
5.2. Southern Hemispheres (SOU).
For Southern Hemisphere installations, ignore these(N, S, E, W) and face the solar panel
to the North (and in a sunny position) when it comes to installing the Integrated outdoor
transmitter.
Step 1: Install the Integrated outdoor transmitter and face the solar panel North.
Step 2: Console operation is set to Southern Hemispheres ( SOU in the time area) in
Location division.
Note: Console has to be location division setting so that the directions on the sensor
are matching with your real location. Permanent wind direction error（read approximately
180º）will be introduced when the wind direction sensor is not positioned correctly during
installation.

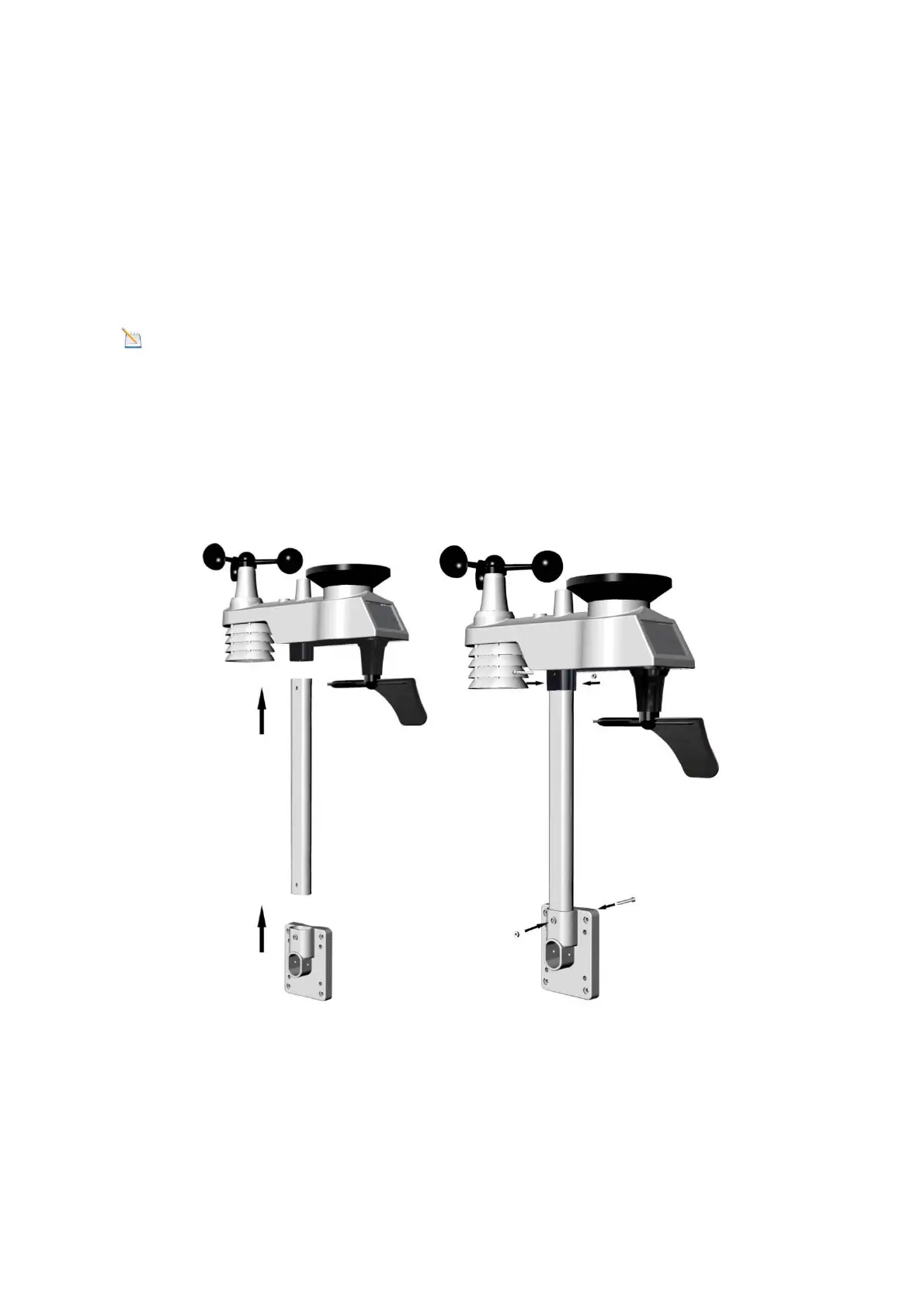

Fasten the integrated transmitter to mounting pole brackets with foot-mounting, two ￠3
bolts and M3 nuts , as shown in Figure 14
Figure 14
Tighten the mounting pole to your existing mounting pole with the four￠5 Bolts and M5
Nuts assembly, or fix on the wall with four tapping screw, as shown in Figure15.
To Next Page
