33
Figure 42

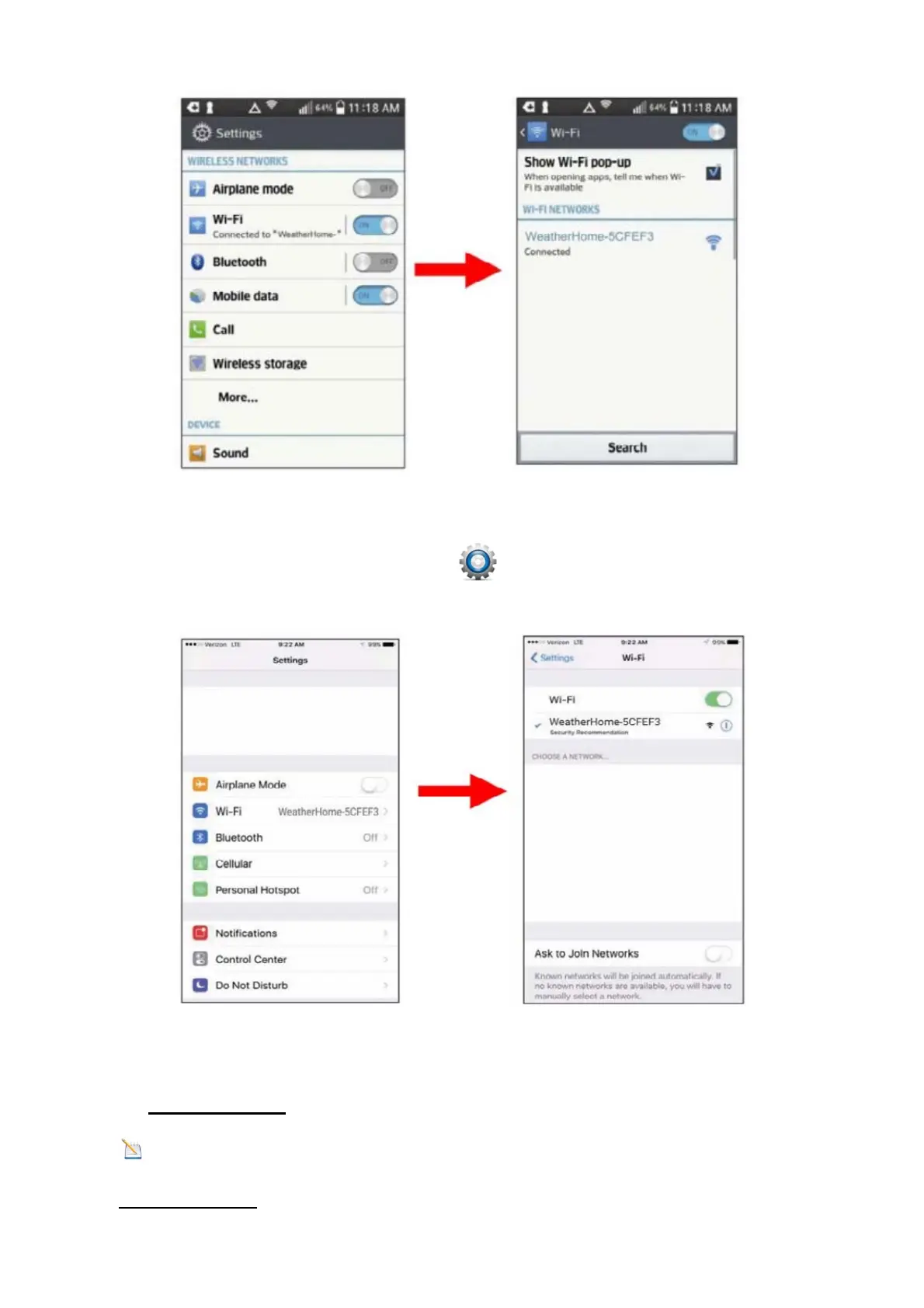

13.4: Example 4. Connect to the console WiFi server with an Android.
From the Apps icon, choose the Settings icon and Wi-Fi. Connect to the
WeatherHome------ WiFi network, as shown in Figure 43 (your WiFi network name may
be slightly different, but will always begin with WeatherHome------ ).
Figure 43
13.5. Once connected, enter the following IP address into any browser’s address
bar:http://192.168.5.1to access the console’s web interface.
Note: Some browsers will treat 192.168.5.1 as a search, so make sure you include
the header http://,or:
http://192.168.5.1 not 192.168.5.1
