P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual

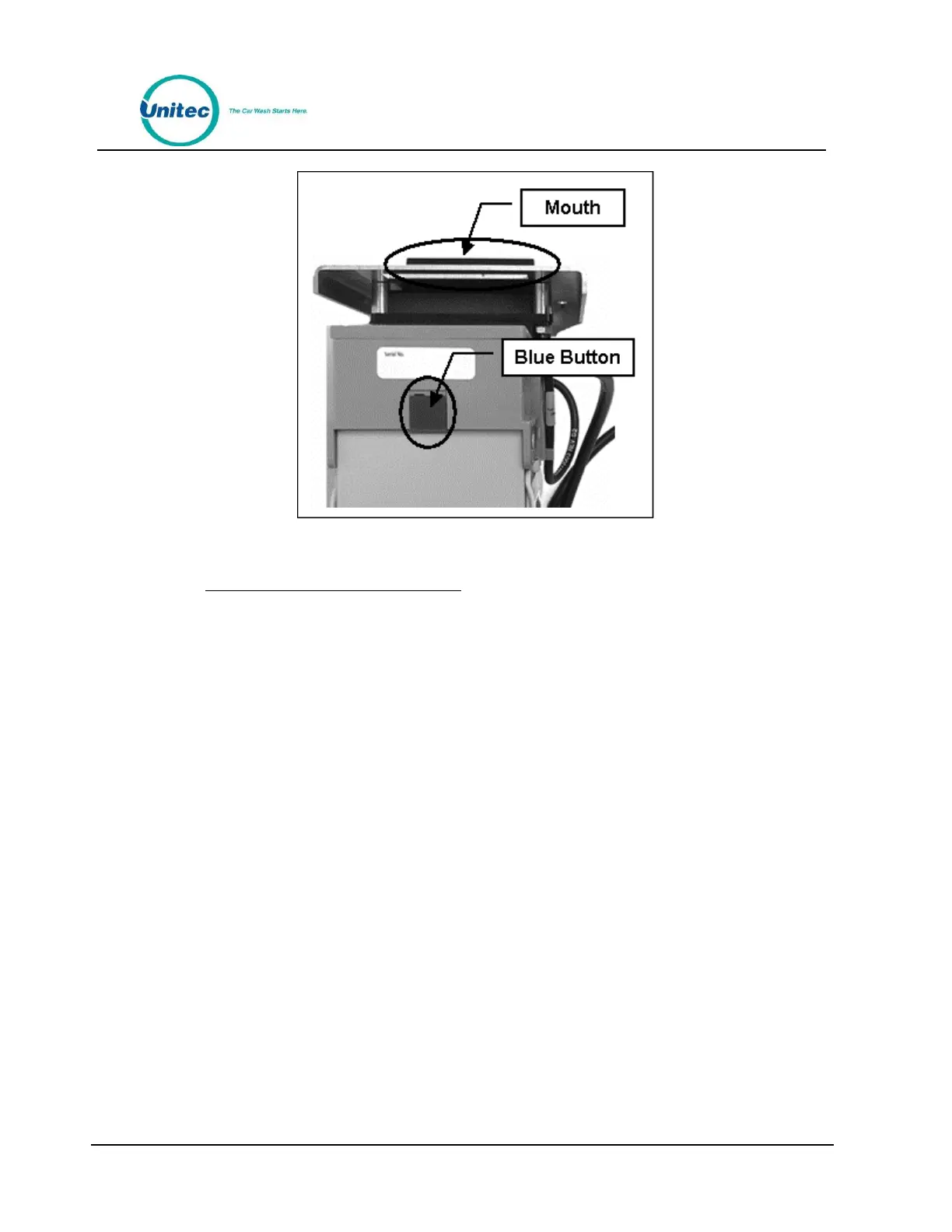

Figure 63. Mars Bill Validator—Top View
1 0 . 5 . 1 . 2 R e p l a c i n g t h e Bi l l S t ac k e r
To replace the stacker, perform the following steps:
1. Position the stacker behind the Mars Bill Validator with the hinged doors on the side, and
the back of the stacker facing away from you.
2. Place the stacker against the bill validator.
3. Align the tabs on the bill stacker just above the guide slots on the bill validator.
4. Slide the stacker tabs into the guide slots, and then down until it is fully seated, as shown in
the following figure.
