Document Number: PTL1028
Document Title: Portal 3 Owners Manual

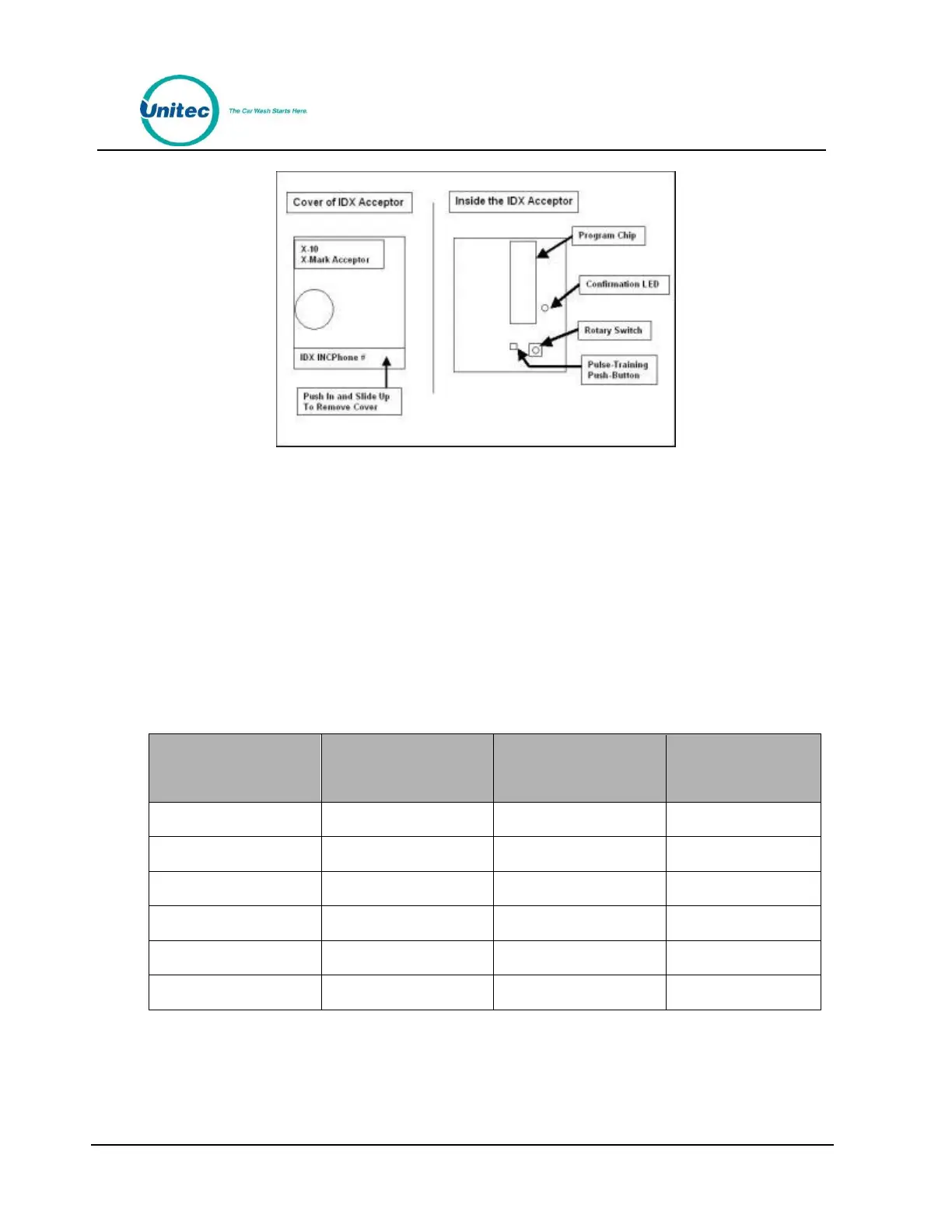

Figure 68. Outside/ Inside of the IDX
You must answer the following questions before proceeding with the programming of the IDX coin
acceptor.
Do you want to accept tokens?
How many different tokens will your site have?
How much will each token be worth?
Refer to the following table to determine which rotary-switch position corresponds to a particular coin
output.
Table 4. IDX Program Configuration
Coins
IDX Rotary Switch
Position
Signal Line
Number of Output
Pulses
Token 1
1
3
Determined by User
Token 2
2
3
Determined by User
Token 3
3
3
Determined by User
Token 4
4
3
Determined by User
$1-Coin
5
2
1
Quarters
6
1
1
10.7.3 Programming the IDX to Accept $1 Coins
The number of pulses is programmed by pressing the push-button the desired number of times prior to
insertion of the sample/programming coins.
